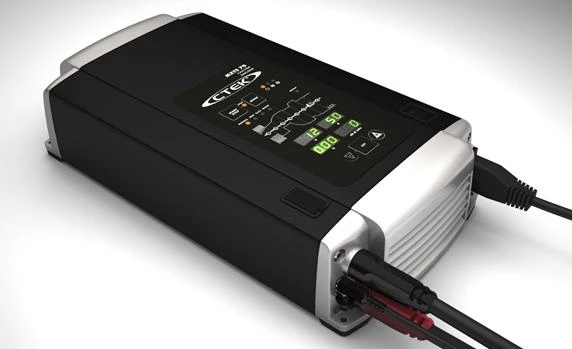

CTEK MXTS 70/50 Smart Charger 12/24VDC 70/50A

Smart charger and power supply in one

The MXTS 70/50 Smart Charger is both a
high-current power supply for memory flashing and a powerful
workshop charger with state of the art technology.

It is developed for both 12V and 24V lead acid batteries, offers
very sophisticated technology­ and is extremely user friendly. The
MXTS 70/50 features different­ displays showing the status of
charging­, charge voltage, current, charge time (h), and energy
indication­ (Ah) for battery condition control. The MXTS 70/50 is
equipped with all necessary features and functions required for
professional battery care at a workshop.

The MXTS 70/50 is also fully automatic 8-step charger that delivers
selectable 50A/12V or 50A/24V to batteries from 20–1 500Ah for 12V
and 20–1 500Ah for 24V. The charger is IP20 classified, housed in
heavy duty aluminum for rough environments and designed to protect
vehicle electronics. It is non-sparking, reverse polarity
protected, and short-circuit proof.

CTEK MXTS 70 50 Smart Charger Features:

• High charge current output
• Selectable nominal charge voltages 12V or 24V
• Several selectable standard 8-step charge algorithms
• The charge algorithm parameters can be changed via an USB
  communication interface
• Adjustable maximal charge current
• Supply mode with selectable voltages
• Visible charge voltage/current/time and amp hours
• Battery temperature compensation of charge voltage
• Informative error indication display
• Mains switch for power ON/OFF

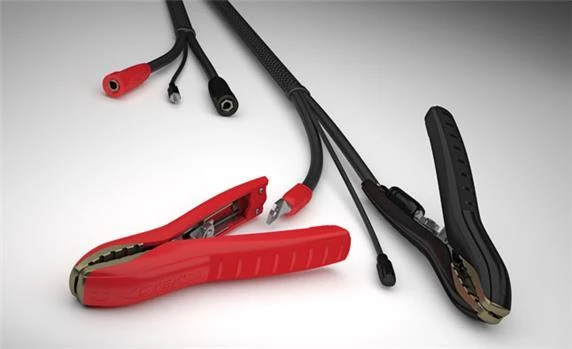

• Detachable mains and charge cables
• Detachable battery temperature sensor
• External USB serial communication interface
• High power factor (cosfi) resulting in less mains load
