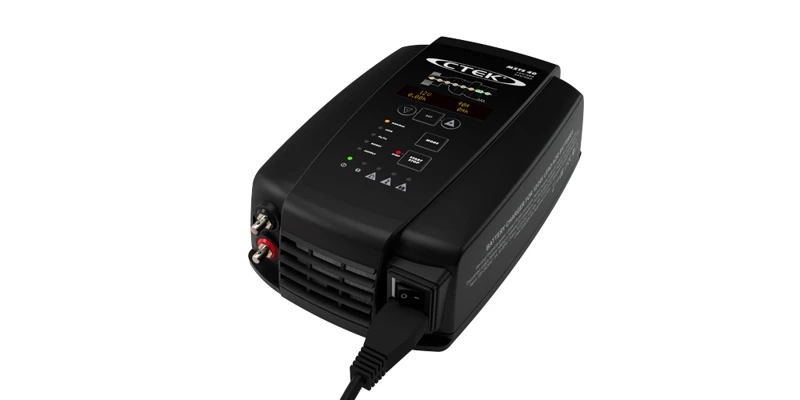

CTEK MXTS 40 Smart Charger 12/24VDC-40/20A

All in one 12V and 24V charging station

The MXTS 40 has both 40A/12V and 20A/24V output, and provides
selectable constant voltage settings to avoid ECU damage due to
voltage fluctuation during programming. As well as the 8 step

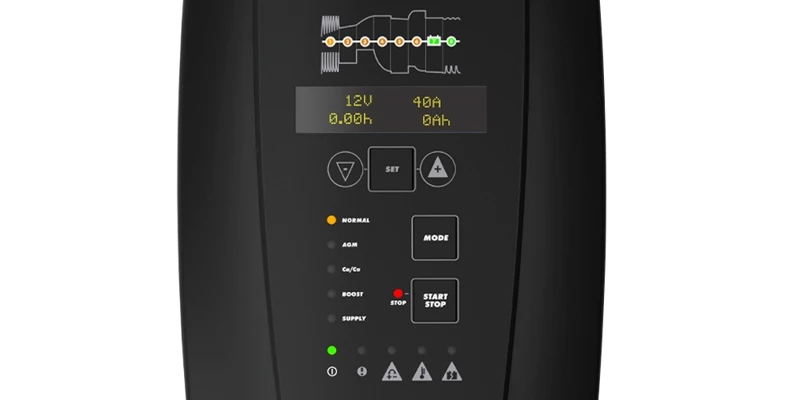

charge progress display, the MXTS 40 also has an easy to read OLED
display to give you clear readouts of key charge parameters,
including current, voltage and amps charged. It has a Recond mode
for reconditioning deeply discharged batteries and a temperature
sensor for optimised charging regardless of weather conditions. The
MXTS 40 has been designed to protect vehicle electronics and is
housed in heavy duty polycarbonate for rough environments. It can
be used with the optional Wall Hanger Pro and Trolley Pro for
secure storage and maximum portability.

Features:

• Electronically safe multi step rapid charging
• 40A/12V and 20A/24V output
• IP20 classified
• Safe spark free operation
• Reverse polarity protected
• Short circuit proof
• Charges 12V batteries from 20-1200Ah and Charges 24V batteries
  from 10 – 600Ah
• Recond program
• Temperature sensor to compensate for cold conditions
• Easy to read OLED display

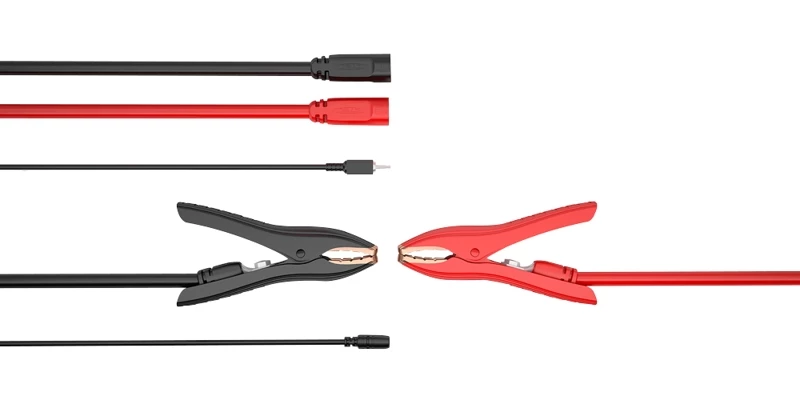

• Comes with heavy duty clamps and high quality detachable 2.5m
  charge cables

Specifications:

Input	220-240VAC, 50-60Hz, 3.0A max
Output	14.4V, 40A/12V or 20A/24V
Start voltage	2.0V
Back current drain	Less than 1Ah/month
Ambient temperature	-20 degreesC to +50 degreesC (- 4 degreesF to +122 degreesF)
Battery types	All types of lead-acid batteries, 12V, 24V, WET, MF, Ca/Ca, AGM, GEL
Battery capacity	10-1200Ah
