CTEK MXT 4.0 24V 4A 8-Stage Battery Charger

24v battery charger

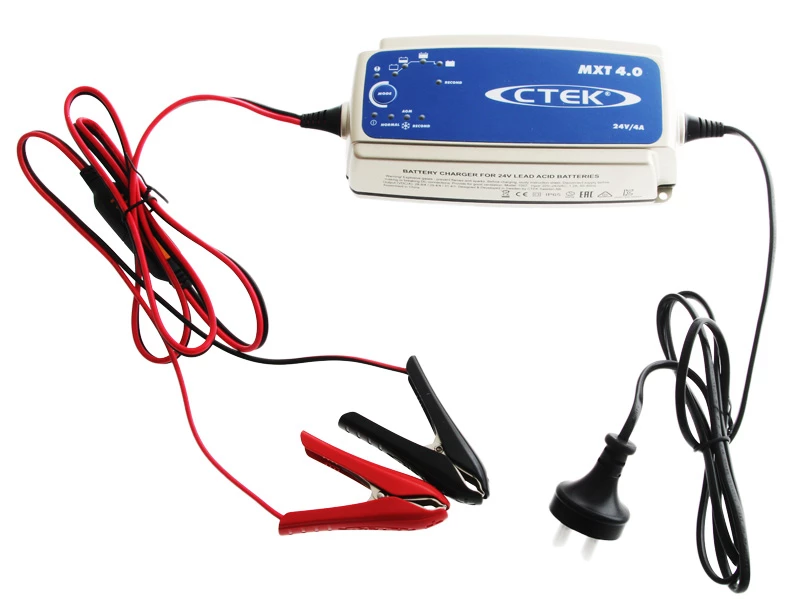

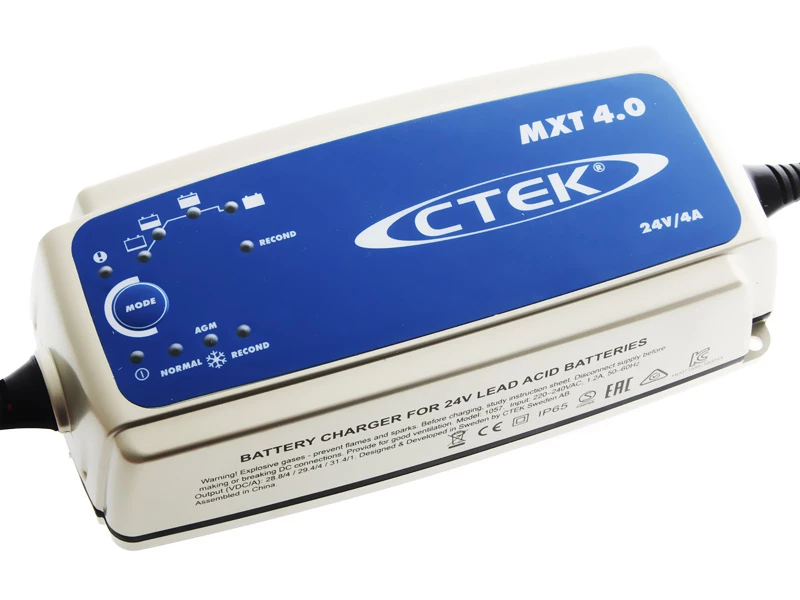

The CTEK MXT 4.0 24V-4A 8-Stage Battery Charger is
a cost-effective charger, suitable for smaller 24V batteries. The
MXT 4.0 is ideal for maintenance charging of larger fleets with 24V
vehicles, backup systems, piste machinery and wheelchairs, etc. The
MXT 4.0 is equipped with all necessary features and functions to
solve a broad range of battery related problems. It offers features
such as battery diagnosis that shows if a battery can receive and
retain a charge, a special reconditioning function that restores
stratified and deeply discharged batteries, unique maintenance
charging, a mode for optimised charging during cold winter days and
the charging of demanding AGM batteries (i.e. Optima).

The MXS 4.0 is a fully automatic 8-step charger
that delivers 4A to 24V batteries from 8-100Ah and is suitable for
maintenance charging up to 250Ah. The charger is IP 65 classified
(splash and dust proof) and compatible with the electronics of a
vehicle. It is non-sparking, reverse polarity protected and
short-circuit proof. The MXS 4.0 is delivered with a 2-year
warranty.

CTEK MXT 4.0 24V-4A 8-Stage Battery Charger
Features:

• COLD/AGM: Charging in cold conditions and AGM
  batteries
• RECOND: Recondition of deeply discharged batteries

CTEK MXT 4.0 24V-4A 8-Stage Battery Charger
Specifications:

• Model number: 1057
• Volt: 24V
• Rated Voltage: AC 220-240VAC, 50-60Hz
• Charging voltage: NORMAL: 28.8V, COLD/AGM: 29.4V, RECOND:
  31.4V
• Min battery voltage: 2.0V
• Charging current: 4A max
• Current, mains: 1.2A rms (at full charging current)
• Back current drain: <1Ah/month
• Ripple: <5%
• Ambient temperature: -20 degreesC to +50 degreesC, output power
  is reduced automatically at high temperatures
• Charger type: 8 step, fully automatic charging cycle
• Battery types: All types of 24V lead-acid batteries (WET, MF,
  Ca/Ca, AGM and GEL)
• Battery capacity: 8-100Ah up to 250Ah for maintenance
• Dimensions: 191 x 89 x 48mm (L x W x H)
• Insulation class: IP65
• Weight: 0.8kg
