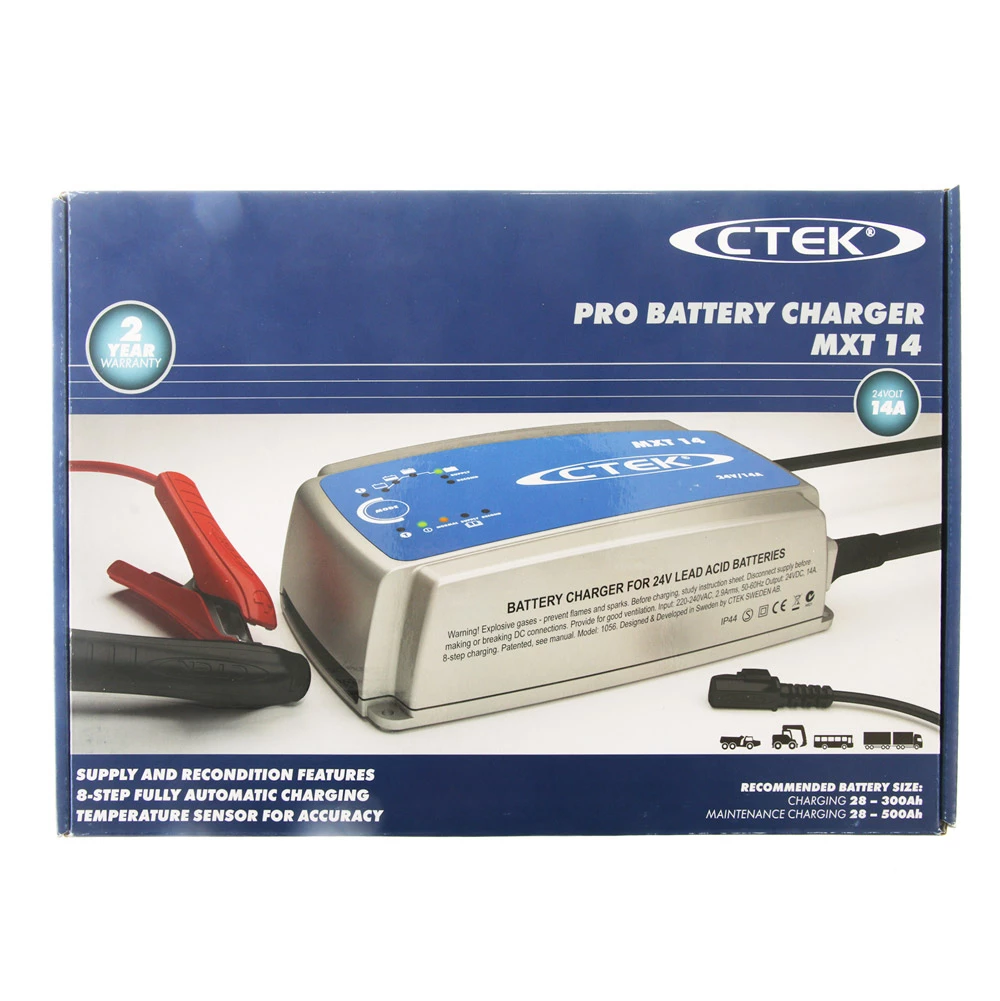

CTEK MXT 14 24V 14A 8-Stage Battery Charger

Solves a broad range of battery-related problems

The CTEK MXT 14 24V-14A 8-Stage Battery Charger is
a professional 24V charger. It is developed for commercial vehicles
where the batteries are put under considerable strain and is ideal
for busses, trucks and CV workshops. The MXS 14 is equipped with
all necessary features and functions to solve a broad range of
battery-related problems. It offers features such as battery
diagnosis that shows if a battery can receive and retain a charge,
a special reconditioning function that restores stratified and
deeply discharged batteries, unique maintenance charging and a
temperature sensor for optimised charging regardless of the weather
conditions. It also has a power supply mode which allows the
battery to be disconnected from the vehicle without losing
important configurations.

The MXT 14 is a fully automatic 8-step charger
that delivers 14A to 24V batteries from 28-300Ah and is suitable
for maintenance charging up to 500Ah. The charger is IP 44
classified (outdoor use), designed to protect vehicle electronics
and non-sparking, reverse polarity protected and short-circuit
proof. It is delivered with a 2-year warranty.

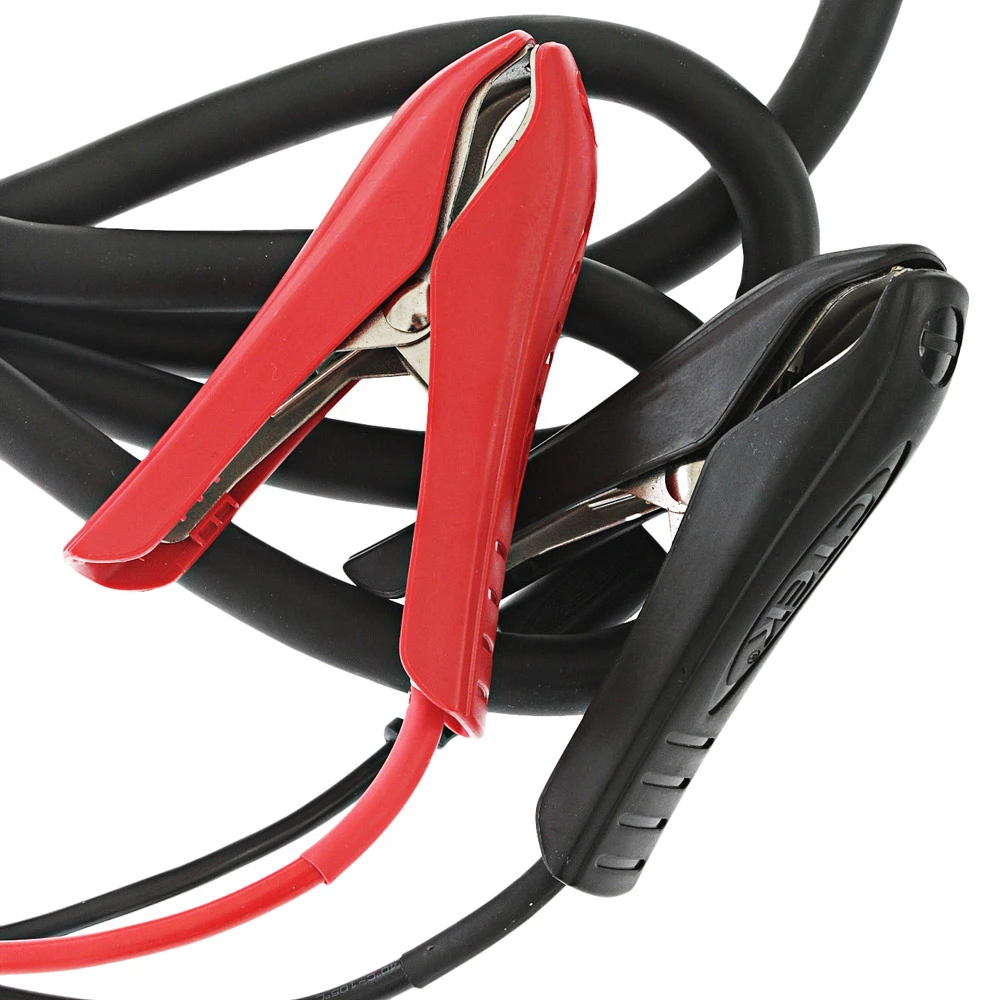

Supplied with clamps, temp sensor on cable.

CTEK MXT 14 24V-14A 8-Stage Battery Charger
Features:

• RECOND: Recondition of deeply discharged batteries
• SUPPLY: Use the charger as a power supply

CTEK MXT 14 24V-14A 8-Stage Battery Charger

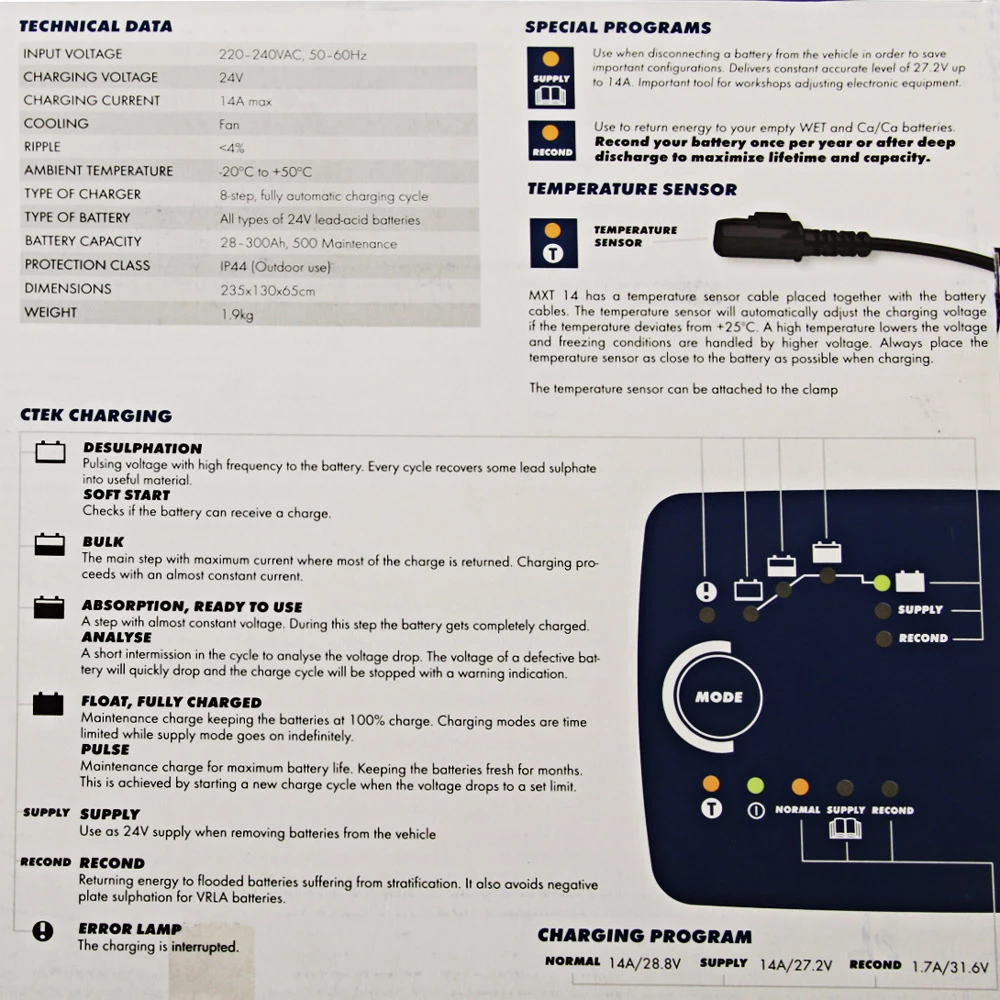

Specifications:

• Volt: 24V
• Rated Voltage: AC 220-240VAC, 50-60Hz
• Charging voltage: NORMAL: 28.8V, RECOND: 31.6V, SUPPLY:
  27.2V
• Min battery voltage: 2.0V
• Charging current: 14A max
• Current, mains: 2.9A rms (at full charging current)
• Back current drain: <1Ah/month
• Ripple: <4%
• Ambient temperature: -20 degreesC to +50 degreesC, output power
  is reduced automatically at high temperatures
• Charger type: 8 step, fully automatic charging cycle
• Battery types: All types of 24V lead-acid batteries (WET, MF,
  Ca/Ca, AGM and GEL)
• Battery capacity: 28-300Ah up to 500Ah for maintenance
• Dimensions: 235 x 130 x 65mm (L x W x H)
• Insulation class: IP44
• Weight: 1.9kg
