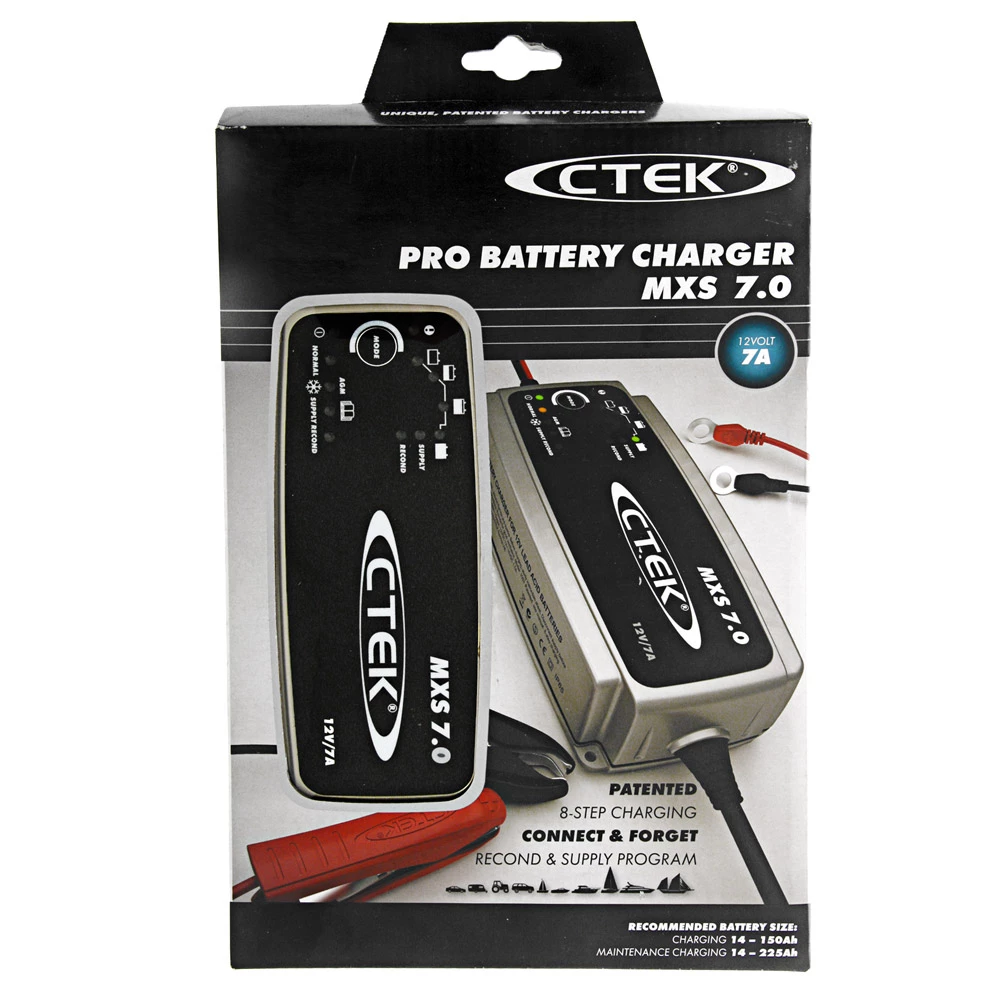

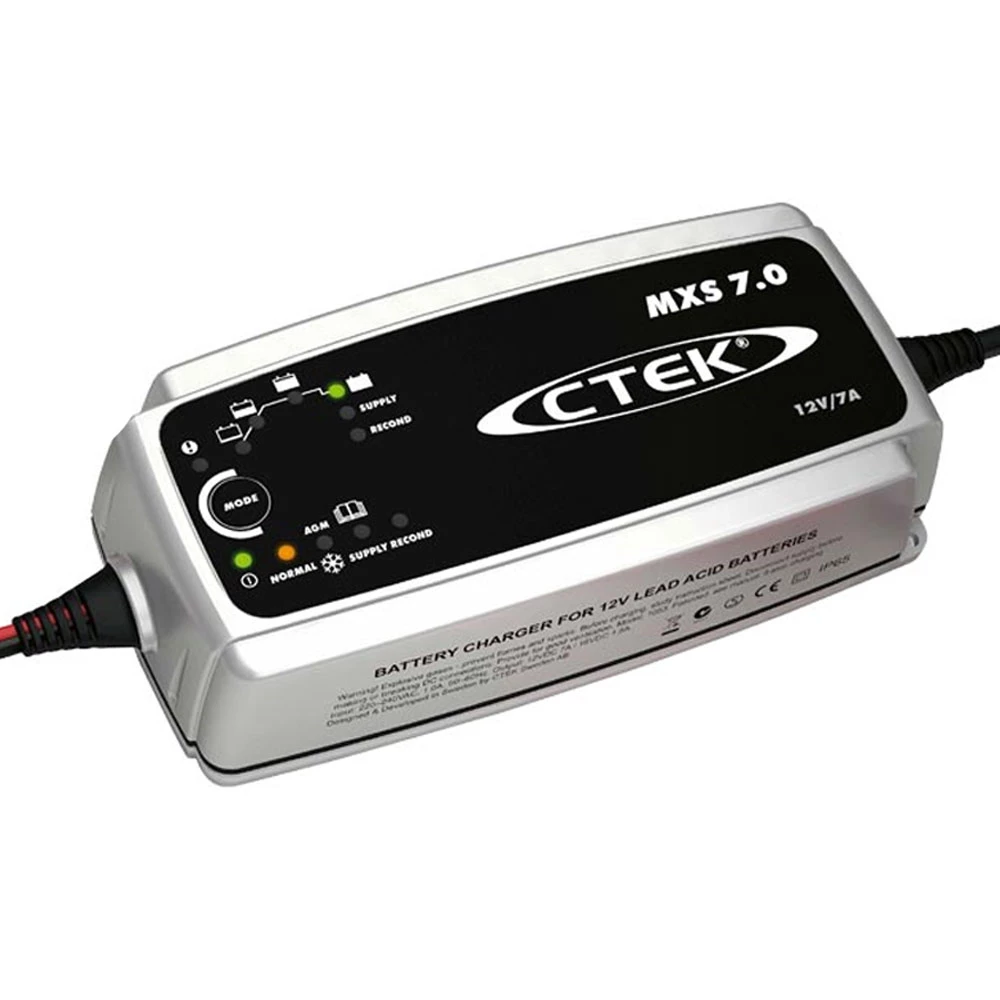

CTEK MXS 7.0 12V 7A 8-Stage Battery Charger

Can supply charging power for larger batteries

The CTEK MXS 7.0 12V-7A 8-Stage Battery Charger is
the perfect universal 12V charger. It is ideal for charging larger
batteries such as caravan, RV, boat and car batteries. These types
of vehicles often demand features that can solve a broad range of
battery-related problems. The MXS 7.0 offers features such as
battery diagnosis that shows if a battery can receive and retain a
charge, a special reconditioning function that restores stratified
and deeply discharged batteries, unique maintenance charging, a
mode for optimised charging during cold winter days and the
charging of demanding AGM batteries (i.e. Optima). It also has a
power supply mode which allows the battery to be disconnected from
the vehicle without losing important configurations.

The MXS 7.0 is a fully automatic 8-step charger
that delivers 7A to 12V batteries from 14-150Ah and is suitable for
maintenance charging up to 225Ah. The charger is IP 65 classified
(splash and dust proof), designed to protect vehicle electronics
and non-sparking, reverse polarity protected and short-circuit
proof. It is delivered with a 5-year warranty.

CTEK MXS 7.0 12V-7A 8-Stage Battery Charger

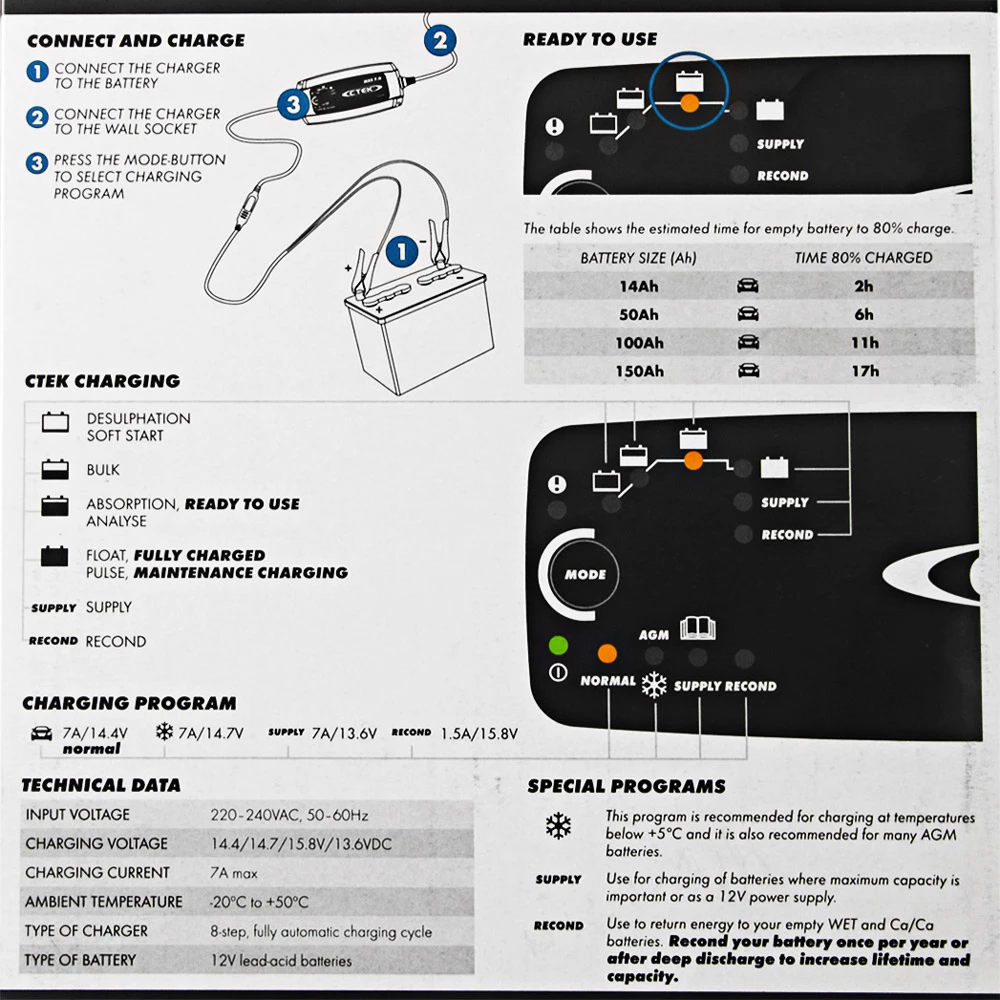

Features:

• Auto: Fully automatic for optimal charging
• 12V: For all lead-acid batteries
• Fully Charged Battery / Maintenance Charging
• COLD/AGM: Charging in cold conditions and AGM
  batteries
• RECOND: Recondition of deeply discharged batteries
• SUPPLY: Use the charger as a power supply

CTEK MXS 7.0 12V-7A 8-Stage Battery Charger
Specifications:

• Volt: 12V
• Rated Voltage: AC 220-240VAC, 50-60Hz
• Charging voltage: 7.2V
• Min battery voltage: 2.0V
• Charging current: 7A max
• Current, mains: 1.2A rms (at full charging current)
• Back current drain: <1Ah/month
• Ripple: <4%
• Ambient temperature: -20 degreesC to +50 degreesC, output power
  is reduced automatically at high temperatures
• Charger type: 8 step, fully automatic charging cycle
• Battery types: All types of 12V lead-acid batteries (WET, MF,
  Ca/Ca, AGM and GEL)
• Battery capacity: 14-150Ah up to 225Ah for maintenance
• Dimensions: 191 x 89 x 48mm (L x W x H)
• Insulation class: IP65
• Weight: 0.8kg

CTEK MXS 7.0 User Manual

CTEK MXS 7.0 Product Sheet
