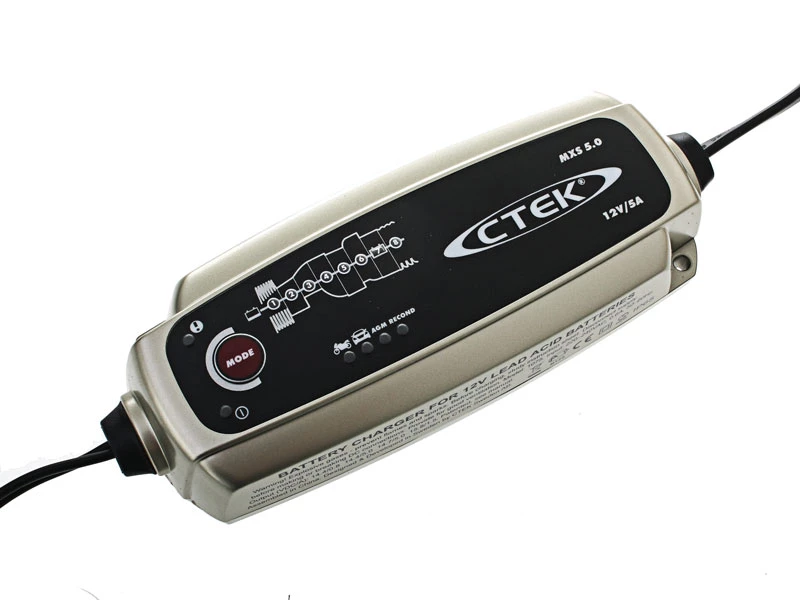

CTEK MXS 5.0T 12V 5A 8-Stage Battery Charger

The smart way to charge your batteries

Revive your boat’s ailing battery with the help of the CTEK
MXS 5.0T 8-Stage Battery Charger. The MXS 5.0T is a fully
automatic “connect-and-forget” charger which provides unrivalled
performance on lead-acid batteries. It offers intelligent features
including battery diagnosis to establish if your battery can
receive and retain a charge, an automatic desulphation step and a
special reconditioning step that will revive and restore deeply
discharged and stratified batteries. What’s more, it has a built-in
automatic temperature compensation mode which ensures the MXS 5.0T
works great even in the most extreme conditions. It’s very
user-friendly and connecting it to your battery is impossible to
get wrong. Should you make a mistake, a red error lamp will light
up to tell you to connect it properly. Easy right? The MXS 5.0T is
safe for you and your batteries so hook this up to your boat’s
batteries and keep them topped up and ready whenever you need
them.

Intelligent programs and functions
The MXS 5.0 uses a unique and patented technology which charges
batteries in an optimal way. There are three different programs and
functions which can be used to ensure that your battery lasts
longer.

Charging and maintenance charging
The MXS 5.0 charges your battery using a unique 8-stage process
which supplies the right voltage to the battery at the right point
in time in the charging cycle. The charger also automatically
switches to maintenance charging for batteries left charging for
more than ten days.

Reconditioning program
The program rectifies acid stratification through charging the
battery at a higher voltage. The acid and water are therefore mixed
through a controlled process. It’s recommend that you recondition
your battery once a year to ensure performance is maintained.

Charging in the cold and AGM batteries
A higher charge voltage is required at low temperatures. The
program therefore increases the charging voltage to 14.7 volts
instead of 14.4. This program is also excellent for AGM
batteries.

8-Stage Battery Charging:

• Step 1: Desulphation – pulsing voltage removes sulphates from
  the lead plates of the battery restoring the battery
  capacity
• Step 2: Soft Start – tests if the battery can accept charge.
  Charging begins if the battery is OK
• Step 3: Bulk – charging with maximum current until
  approximately 80 % battery capacity
• Step 4: Battery ready to use – charging with declining current
  to maximize up to 100 % battery capacity
• Step 5: Analyse – tests if the battery can hold charge.
  Batteries that cannot hold charge may need to be replaced
• Step 6: Recond – reconditioning function for deeply discharged
  batteries
• Step 7: Fully charged battery – maintaining the battery voltage
  at maximum level by providing a constant voltage charge
• Step 8: Maintenance charging – maintaining the battery at
  95–100 % capacity. The charger monitors the battery voltage and
  gives a pulse when necessary to keep the battery fully
  charged

CTEK MXS 5.0T 8-Stage Battery Charger
Features:

• Fully automatic 8-step charger
• Provides fully automatic charging and can be left attached for
  months
• Spark-proof and reverse polarity protected to ensure safety and
  vehicle electronics are not harmed during charging
• Charges, conditions and maintains all types of lead acid
  batteries: wet, MF, AGM, GEL, Dry and Calcium
• Energy-efficient charges that extend battery life, reducing
  unnecessary replacement and waste
• Used by leading vehicle manufacturers including Audi, Bentley,
  BMW, Ferrari, Jaguar, Lamborghini, Mercedes Benz, Porsche, Rolls
  Royce, Yamaha

CTEK MXS 5.0T 8-Stage Battery Charger
Specifications:

• Charging voltage: 14.4/14.7/15.8 V
• Charging current max: 5A
• Battery capacity: 1.2–110 Ah, up to 160 Ah for
  maintenance
• Ripple: <4%
• Ambient temperature: -20C to +50c, output power is reduced
  automatically at high temperatures
• Battery size: 1.2-110AH up to 160ah for maintenance
• Insulation: IP65 (splash and dust proof)
• Weight: 0.6kg
• Dimensions (LxHxW): 168 x 65 x 38mm

CTEK MXS 5.0T 8-Stage Battery Charger User Manual

Note: Designed for single battery charging and
maintenance.
