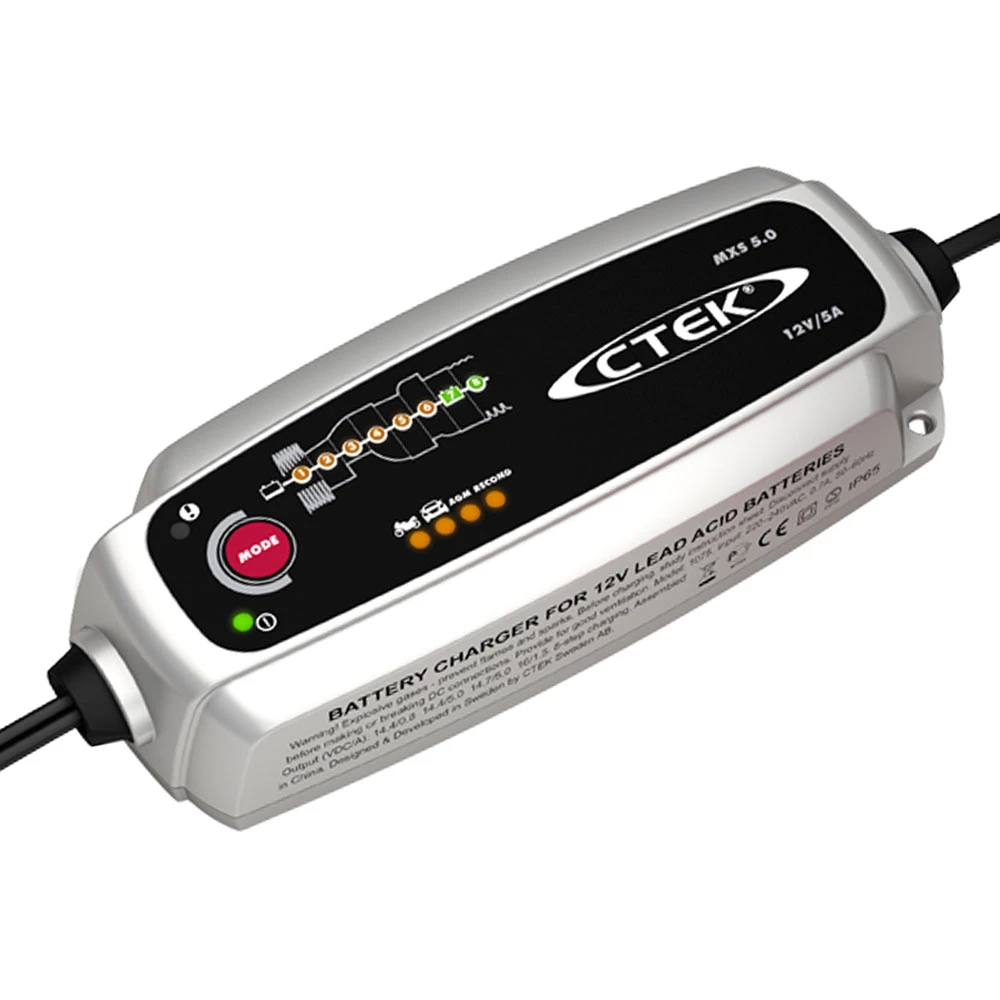

CTEK MXS 5.0 Test And Charge 8-Stage Battery Charger

Connect, test and charge

The CTEK MXS 5.0 Test and Charge 8-Stage Battery
Charger combines an advanced microprocessor controlled
battery charger with a battery and alternator test function to
provide the ultimate battery testing, charging and maintenance.

Charging
The MXS 5.0 Test and Charge provides excellent performance on
batteries from 1.2Ah up to 110Ah. The charger solves a broad range
of battery problems and features include a patented automatic
desulphation step and a special reconditioning step that will
revive and restore deeply discharged and stratified batteries. The
patented Float/Pulse maintenance makes the charger ideal for
long-term maintenance. The RECOND and cold charging condition
option operate individually or together in both small and medium
size battery programmes providing great flexibility for the
user.

Testing
Three easy to use programs to test battery voltage, start power and
alternator performance to provide a complete picture of battery and
vehicle charging system health.

The MXS 5.0 Test and Charge is easy and safe to use, protects
vehicle electronics, spark-free, reverse polarity protected and
short circuit proof.

CTEK MXS 5.0 Test and Charge 8-Stage Battery
ChargerFeatures:

• Complete battery care — unique and patented system to recover,
  charge and maintain all lead-acid battery types to maximise
  performance and extend life.
• Safe and easy to use — user safety through spark free operation
  and reverse polarity protection. Vehicle electrical safety through
  exceptionally clean voltage and current delivery with no surges or
  spikes. No need to disconnect battery from the vehicle when
  charging
• “Connect and forget” — simple plug and play operation. Select
  the program and mode and leave the charger to do the rest.
• Unique 8 step charging — the patented 8 step programme tests
  battery condition and revives, charges and maintains to ensure
  maximum battery life and performance. RECOND recovers deep
  discharged and stratified batteries. FLOAT/PULSE maintenance
  ensures ideal battery care during periods of inactivity.
• Tests battery and alternator — three unique and simple to
  perform test programs to establish condition and performance of
  battery and vehicle charging system.
• Extends battery life — the unique features of CTEK chargers
  combine to maximise performance and extend battery life

CTEK MXS 5.0 Test and Charge 8-Stage Battery Charger
Specifications:

• Ambient temperature: -20˚C to +50˚C (- 4°F to +122°F)
• Positioning: Portable
• Warranty: 5 years
• Charging current: Max 5A
• Input: 220–240VAC, 50–60Hz, 1.1A max
• Output: 14.4V/14.7V/15.8V, 4.3A max
• Start voltage: 2.0V
• Back current drain: Corresponding to less than
  1Ah/month
• Battery types: 12V:, WET, MF, Ca/Ca, AGM, GEL
• Battery capacity: 1.2 –110Ah, up to 160Ah for
  maintenance
• Insulation class: IP65 (splash and dust proof)
