CTEK MXS 5.0 Battery Charger Value Pack With Power Bank 12V/5A

Complete battery care

The CTEK MXS 5.0 Battery Charger Value Pack solves
a broad range of battery problems and is the ideal charger for the
user with high demands. This package comes complete with comfort
indicatir to check battery status, unit protection bumper, plus a
5000mAh Power Bank! Sweet as!

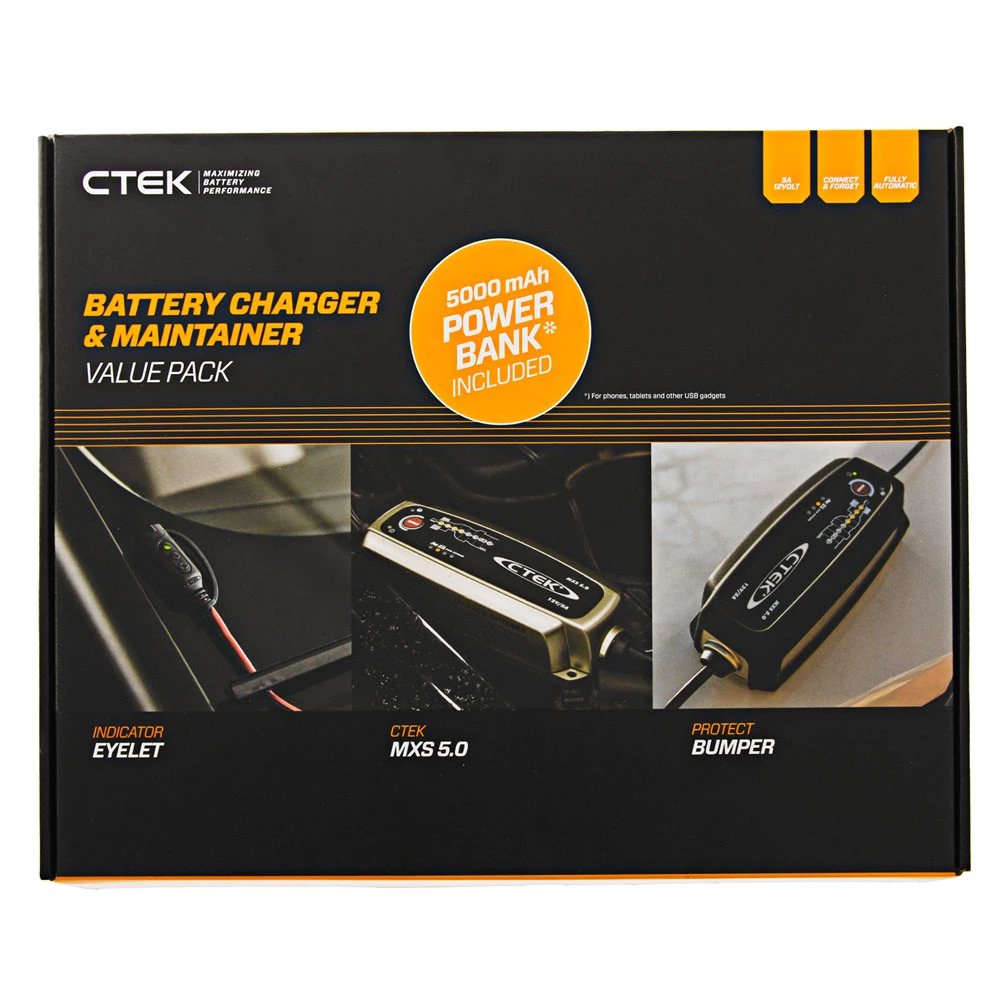

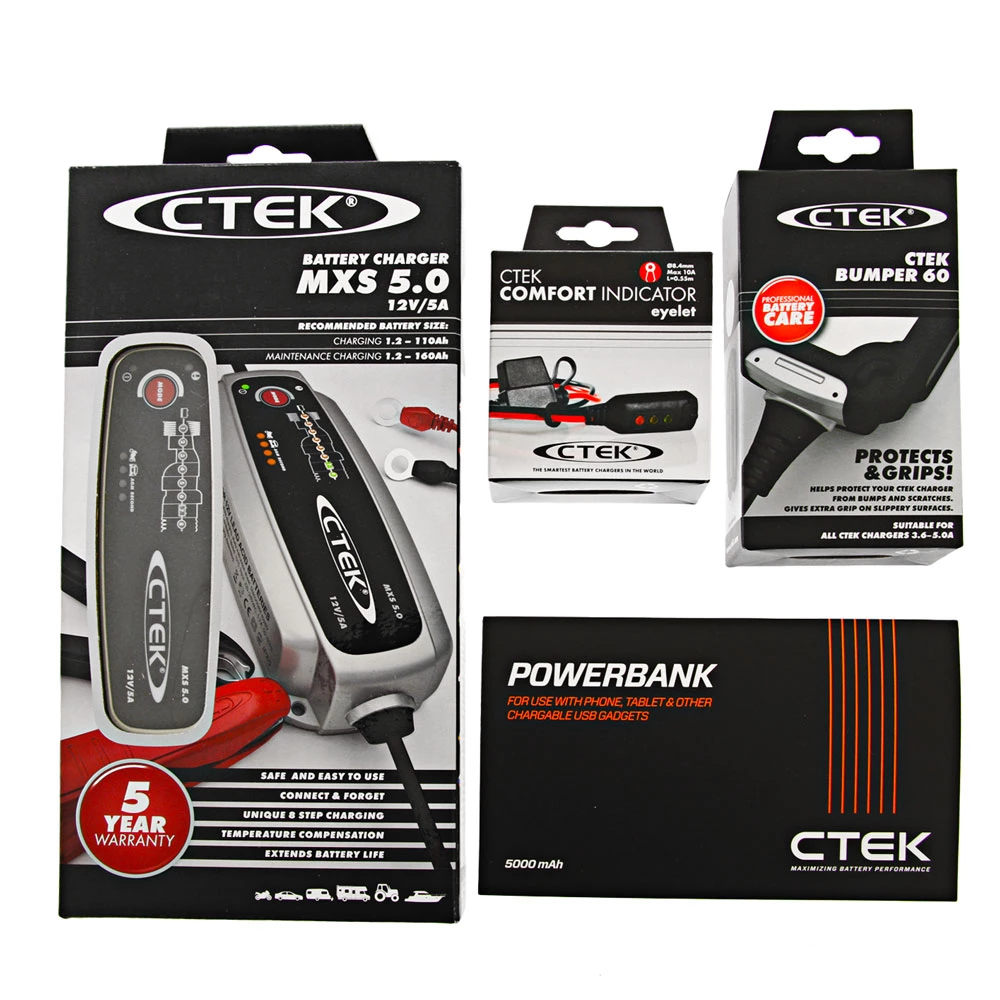

Package Includes:

• CTEK MXS 5.0 8-Step Battery Charger 12V/5A

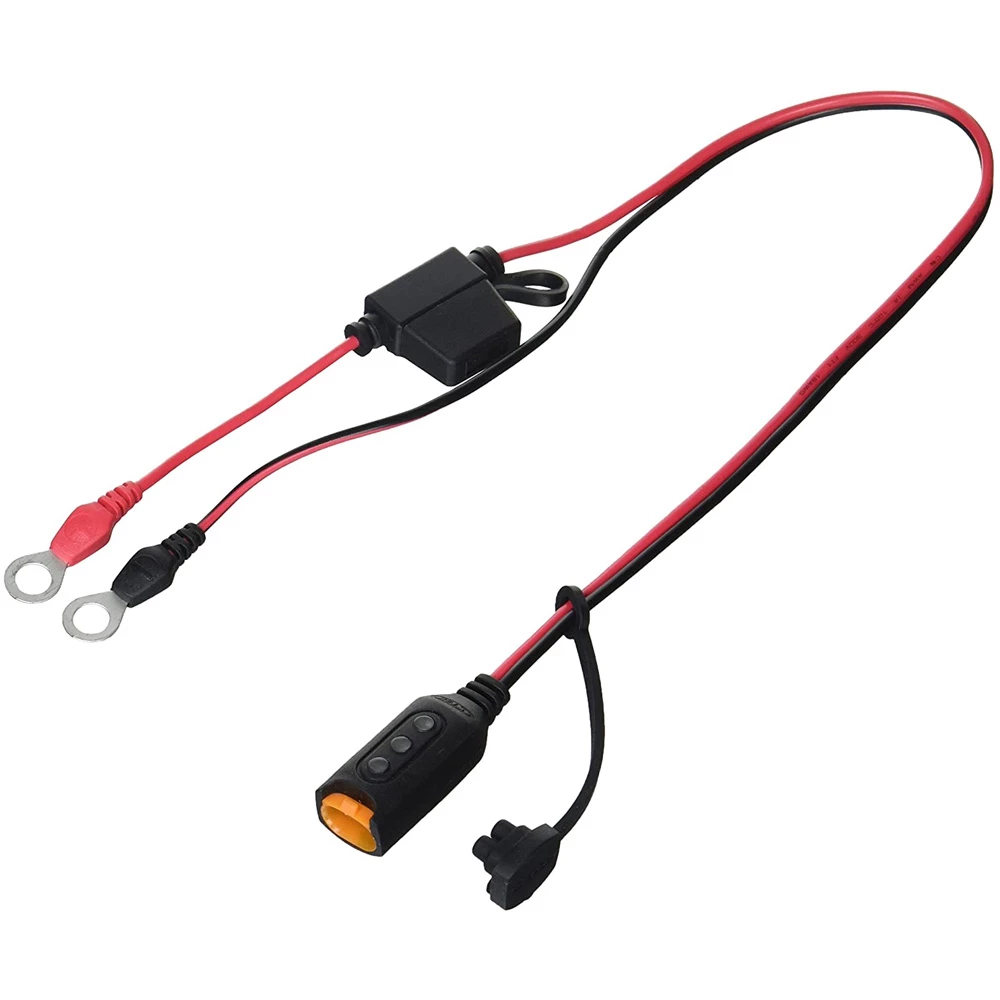

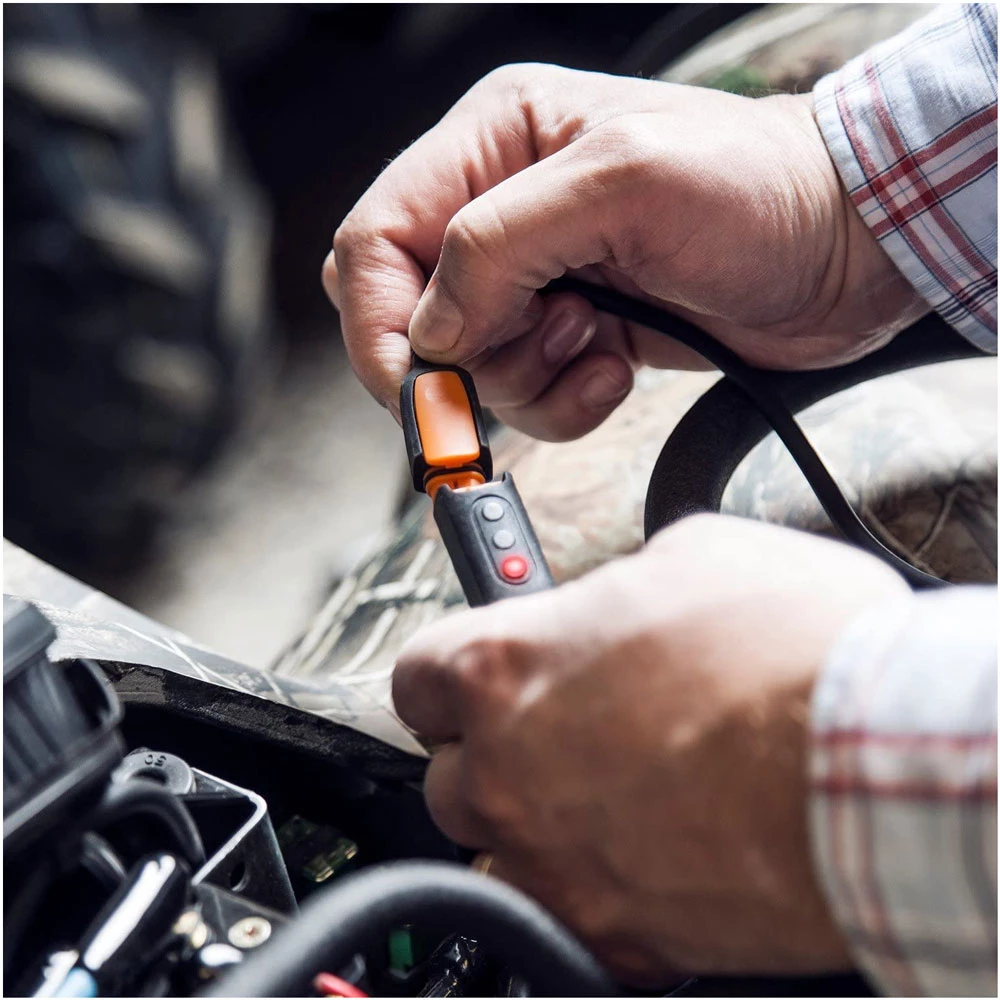

• Comfort Indicator

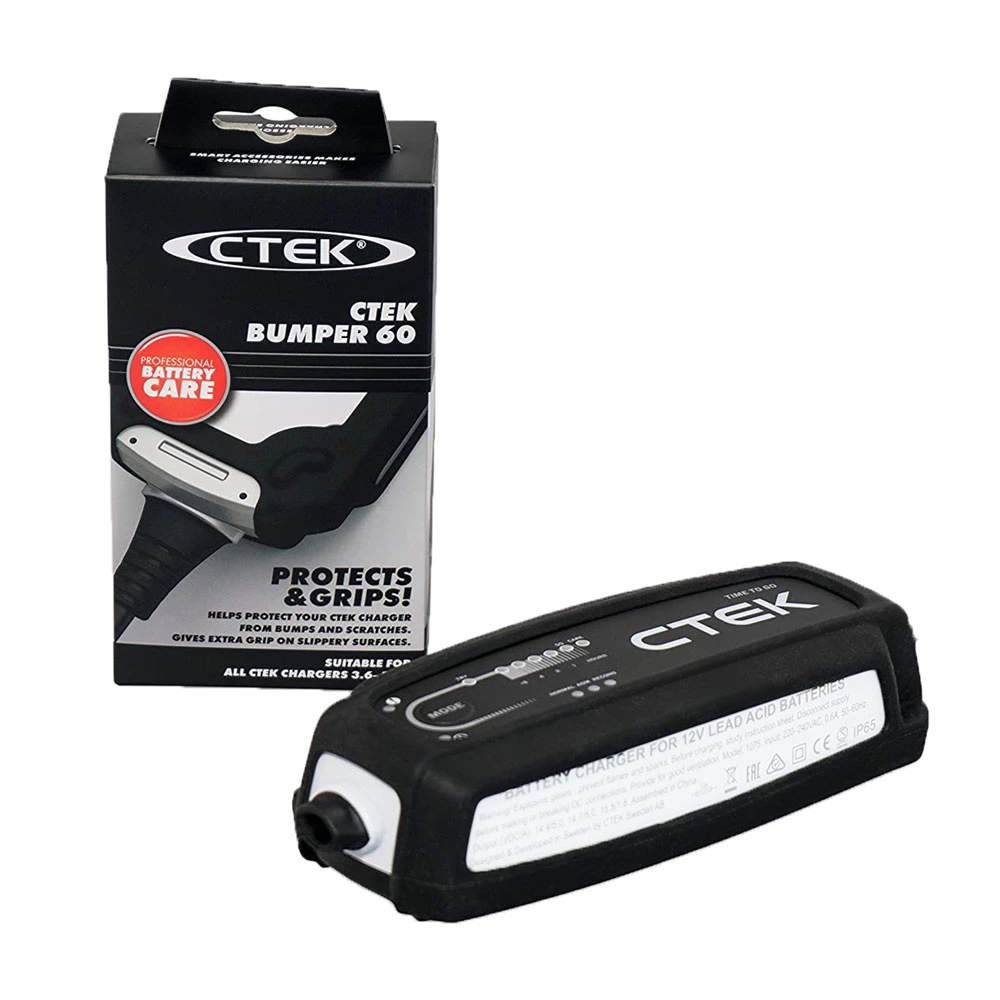

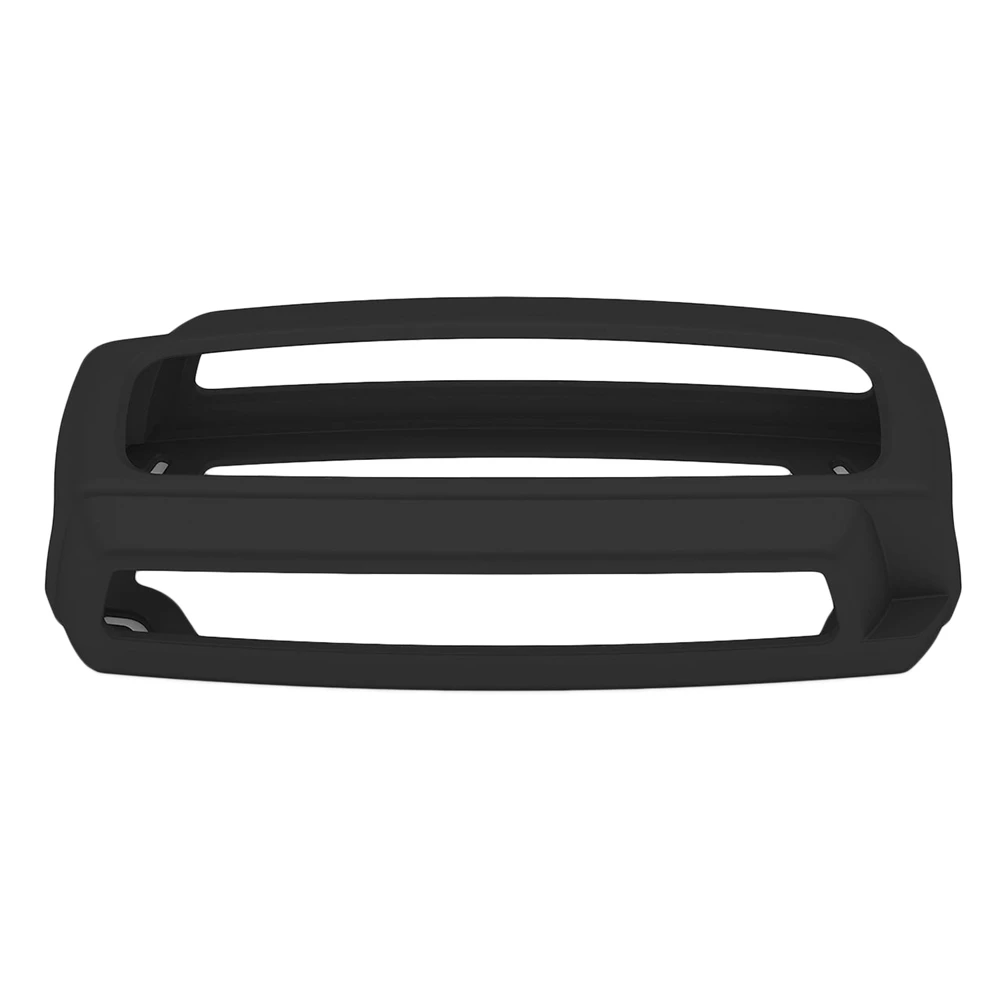

• Protect Bumper 60

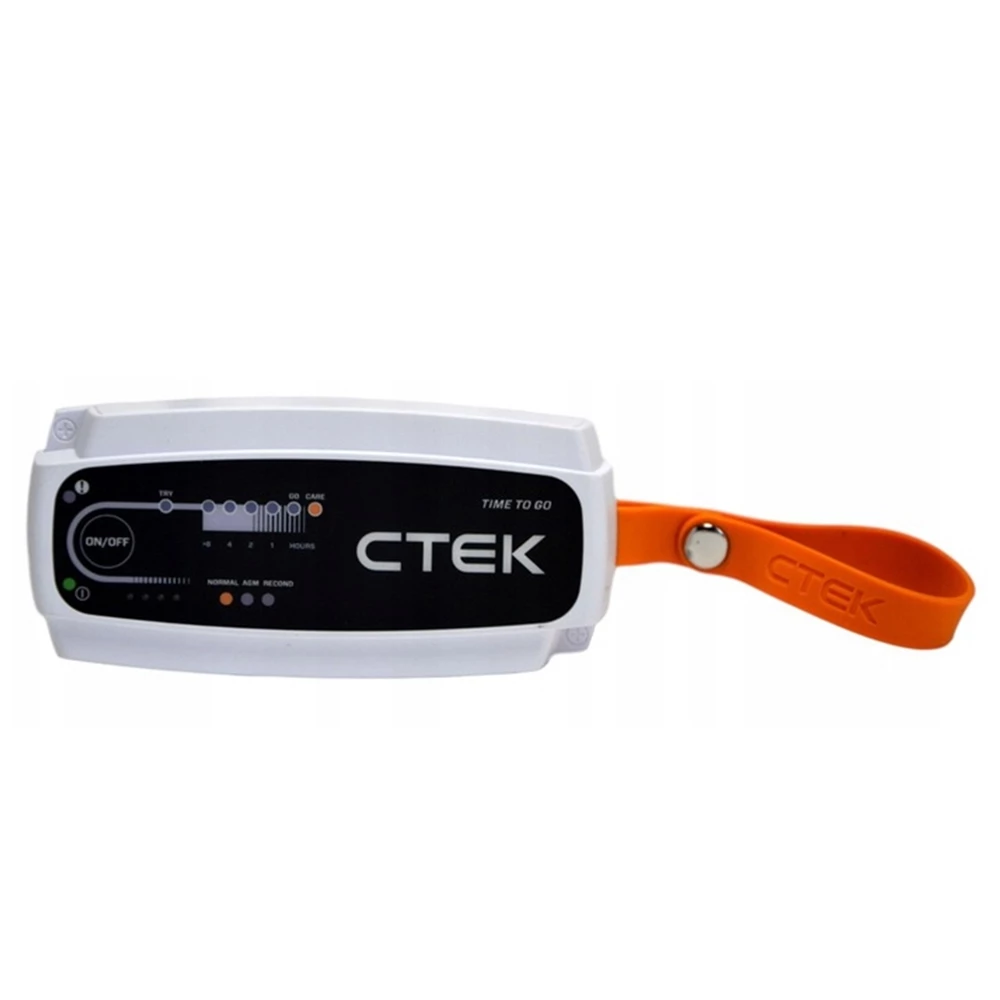

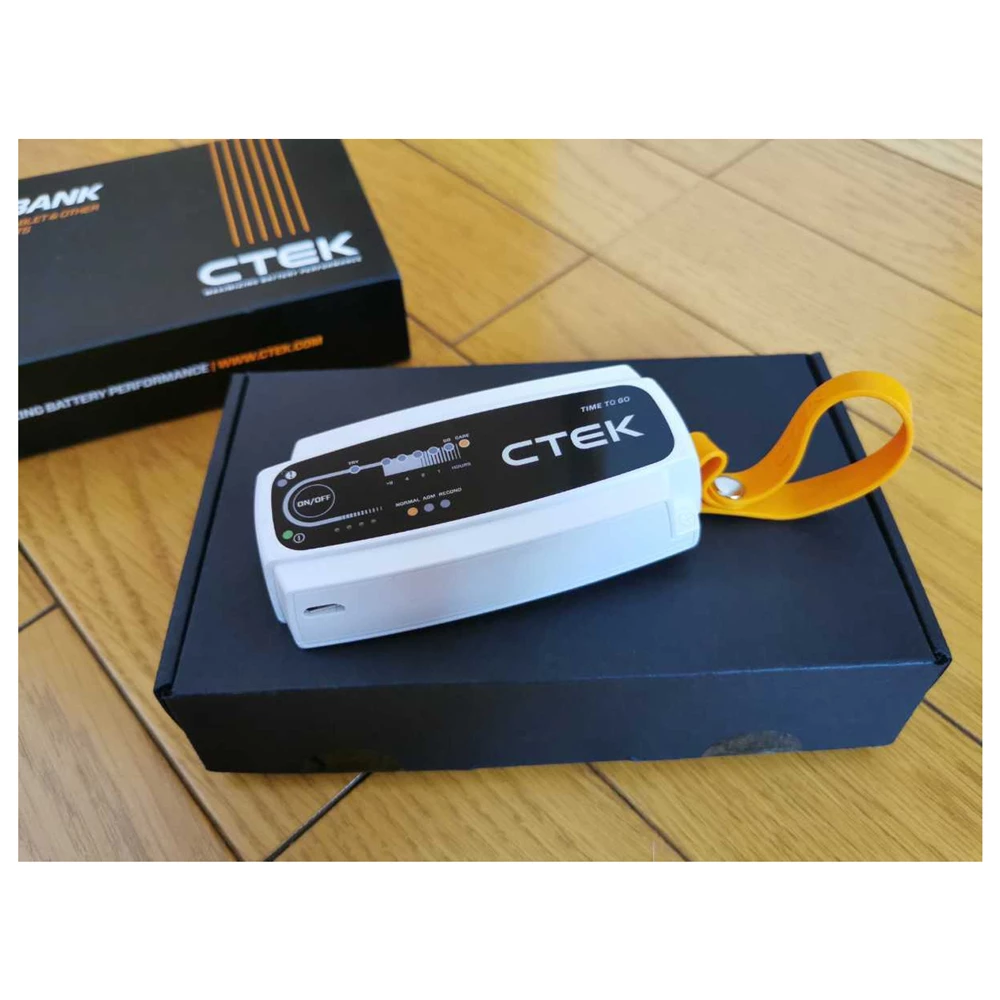

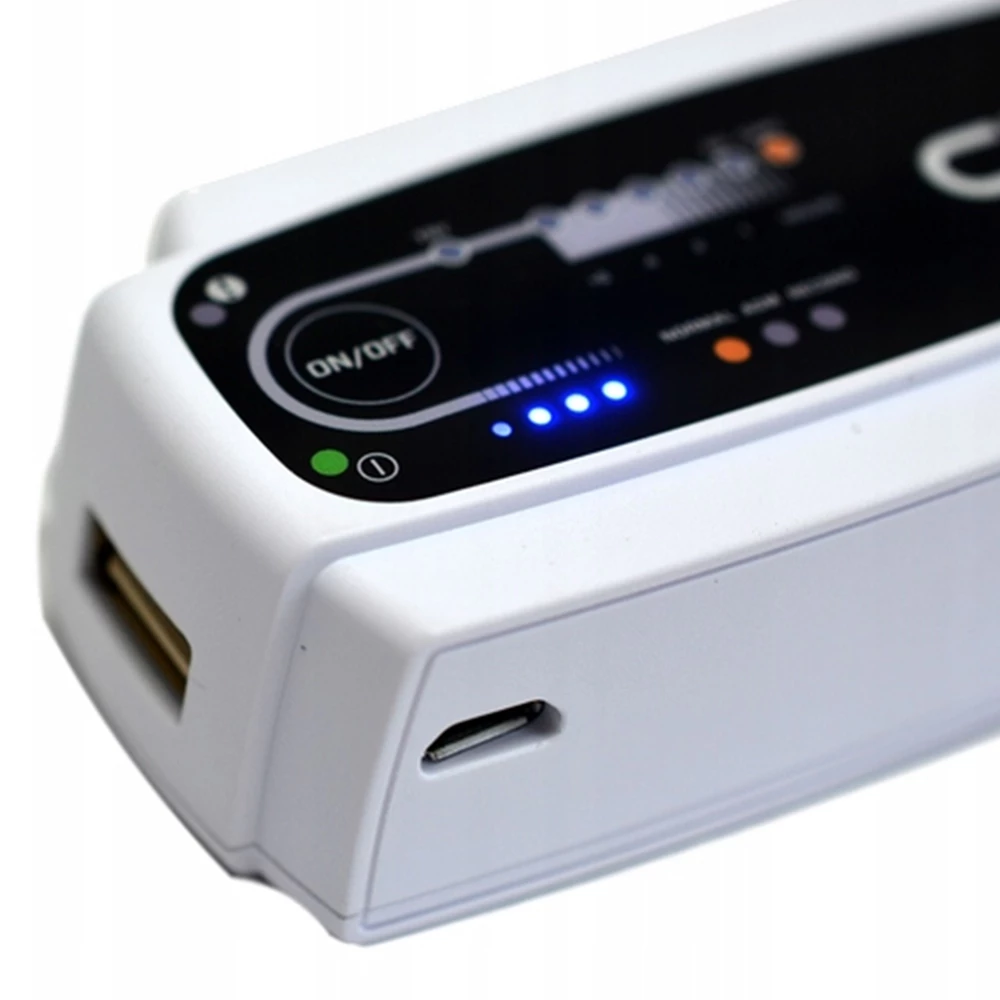

• 5000mAh Power Bank

The Battery Charger

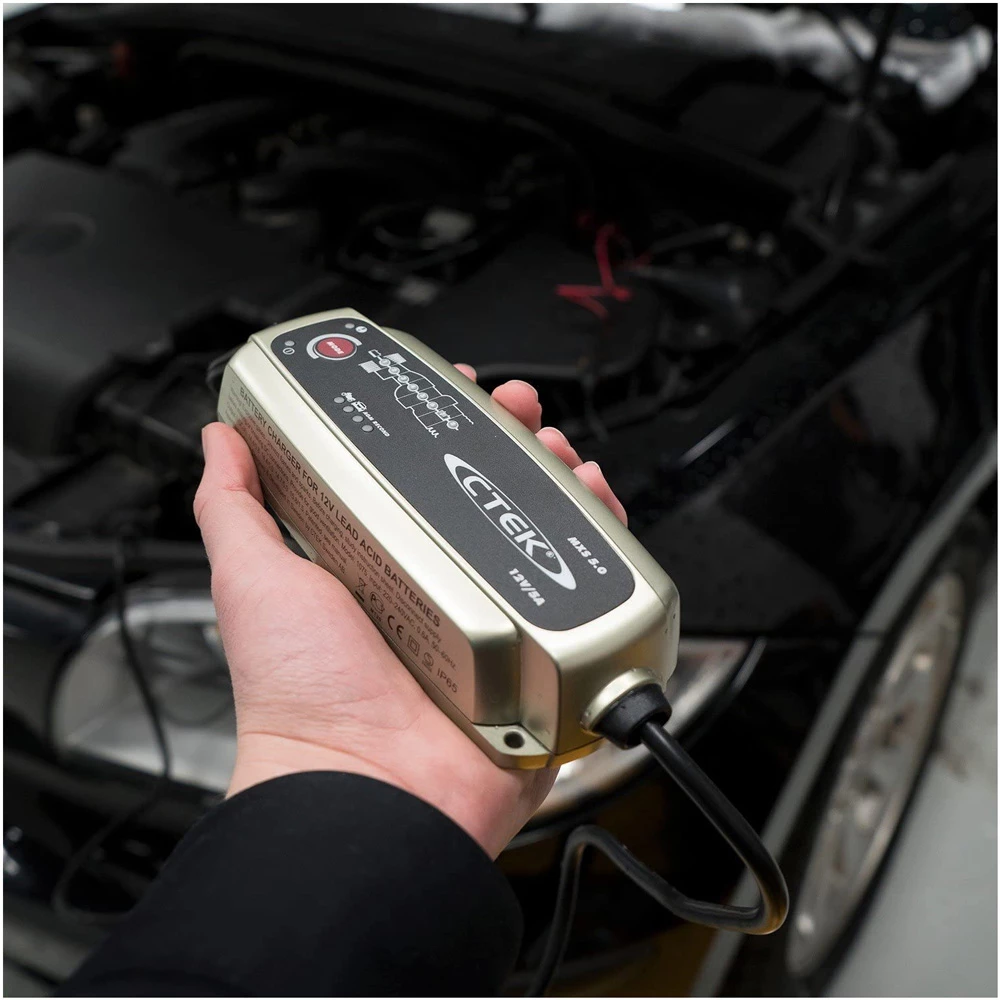

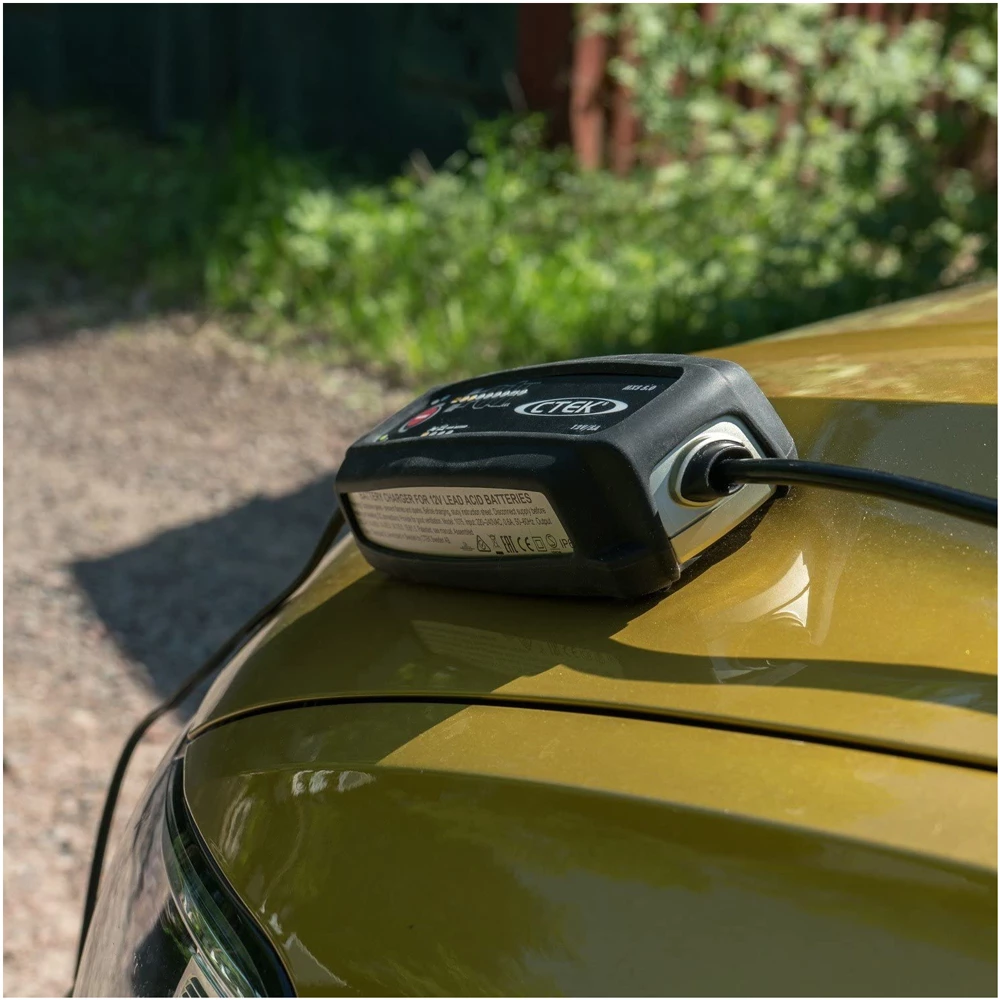

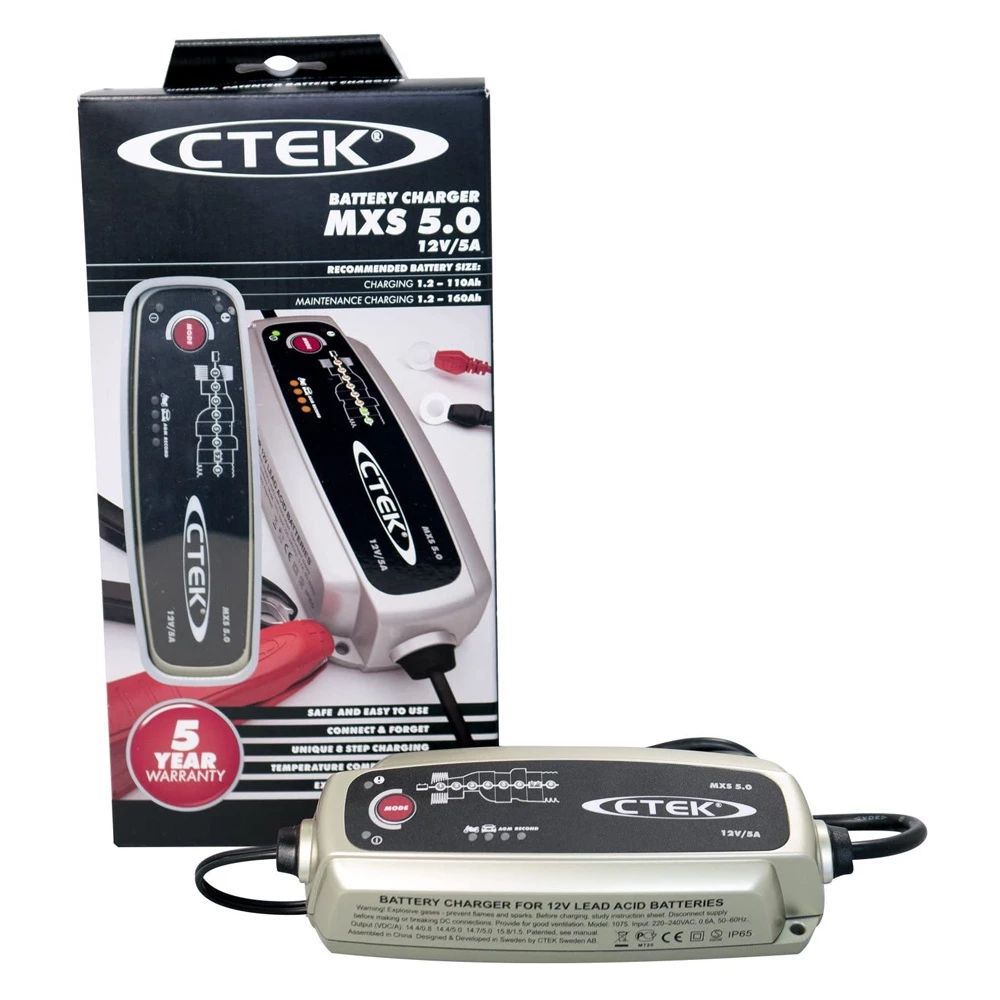

The CTEK MXS 5.0 8-Step Battery Charger is an
advanced microprocessor controlled battery charger which gives
unrivalled performance for lead acid batteries from 1.2-110Ah. It
comes with automatic temperature compensation built in which
ensures the best charging performance, even in the most extreme
conditions. The MXS 5.0 also includes battery diagnosis to
establish whether your battery can receive and retain a charge,
patented automatic desulphation program, an AGM option which
maximises the performance life of most Stop/Start batteries and a
special Recond mode for reconditioning deeply discharged
batteries.

The built in temperature compensation ensures ideal charging
performance even in the most extreme conditions. Patented
Float/Pulse maintenance makes the MXS 5.0 ideal for long – term
maintenance. The entire process of battery testing, charging and
maintenance is easily followed on the clear LED display.

The MXS 5.0 is a fully automatic “connect and forget” 12V charger
with 8 charging steps and offers selectable SMALL BATTERY and
NORMAL BATTERY programs. The RECOND and AGM options operate
individually or together in both SMALL BATTERY and NORMAL BATTERY
programs providing great flexibility. Wide charging range on all
lead-acid battery types from 1.2Ah up to 110Ah with additional
maintenance capability to 160Ah.

Complete battery care
Unique and patented system to recover, charge and maintain all
lead-acid battery types to maximise performance and extend
life.

Safe and easy to use
User safety through spark free operation and reverse polarity
protection. Vehicle electrical safety through exceptionally clean
voltage and current delivery with no surges or spikes. No need to
disconnect battery from the vehicle when charging.

“Connect and forget”
Simple plug and play operation. Select the program and mode and
leave the charger to do the rest.

Unique 8 step charging
The patented 8 step programme tests battery condition and revives,
charges and maintains to ensure maximum battery life and
performance. RECOND recovers deep discharged and stratified
batteries. FLOAT/PULSE maintenance ensures ideal battery care
during periods of inactivity.

Temperature compensation
Built in automatic charge voltage compensation depending on ambient
temperature ensures ideal charging in extreme cold or hot weather
conditions.

Extends battery life
The unique features of CTEK chargers combine to ensure maximum
battery reliability, performance and life.

Unique 8-Step Charging

• STEP 1: DESULPHATION
  Pulsing voltage removes sulphates from the lead plates of the
  battery restoring the battery capacity.
• STEP 2: SOFT START
  Tests if the battery can accept charge. Charging begins if the
  battery is OK.
• STEP 3: BULK
  Charging with maximum current until approximately 80 % battery
  capacity.
• STEP 4: ABSORPTION, BATTERY READY TO USE
  Charging with declining current to maximise up to 100 % battery
  capacity.
• STEP 5: ANALYSE
  Tests if the battery can hold charge. Batteries that cannot hold
  charge may need to be replaced.
• STEP 6: RECOND
  Reconditioning function for deeply discharged batteries.
• STEP 7: FLOAT, BATTERY FULLY CHARGED
  Maintaining the battery voltage at maximum level by providing a
  constant voltage charge.
• STEP 8: PULSE, MAINTENANCE CHARGING
  Maintaining the battery at 95–100 % capacity. The charger monitors
  the battery voltage and gives a pulse when necessary to keep the
  battery fully charged

CTEK MXS 5.0 8-Step Battery Charger Features:

• Easy and safe to use
• Fully automatic ‘connect and forget’ 8 step 12V
  charging
• Smaller battery, normal battery, AGM and Recond
  programs
• Built in automatic temperature compensation
• Patented float/pulse maintenance for batteries up to
  160Ah
• Splash proof and dust proof (IP65)
• Protects vehicle electronics
• Spark-free
• Reverse polarity protected and short circuit proof

CTEK MXS 5.0 8-Step Battery Charger
Specifications:

• Ambient temperature: -20˚C to +50˚C
• Positioning: Portable
• Warranty: 5 years
• Input: 220–240VAC, 50–60Hz, 0.6A max
• Output: 14.4V/14.7V/15.8V, 5.0A max
• Start voltage: 2.0V
• Back current drain: Corresponding to less than
  1Ah/month
• Battery types: 12V:, WET, MF, Ca/Ca, AGM, GEL
• Battery capacity: 1.2–160Ah
• Insulation class: IP65
