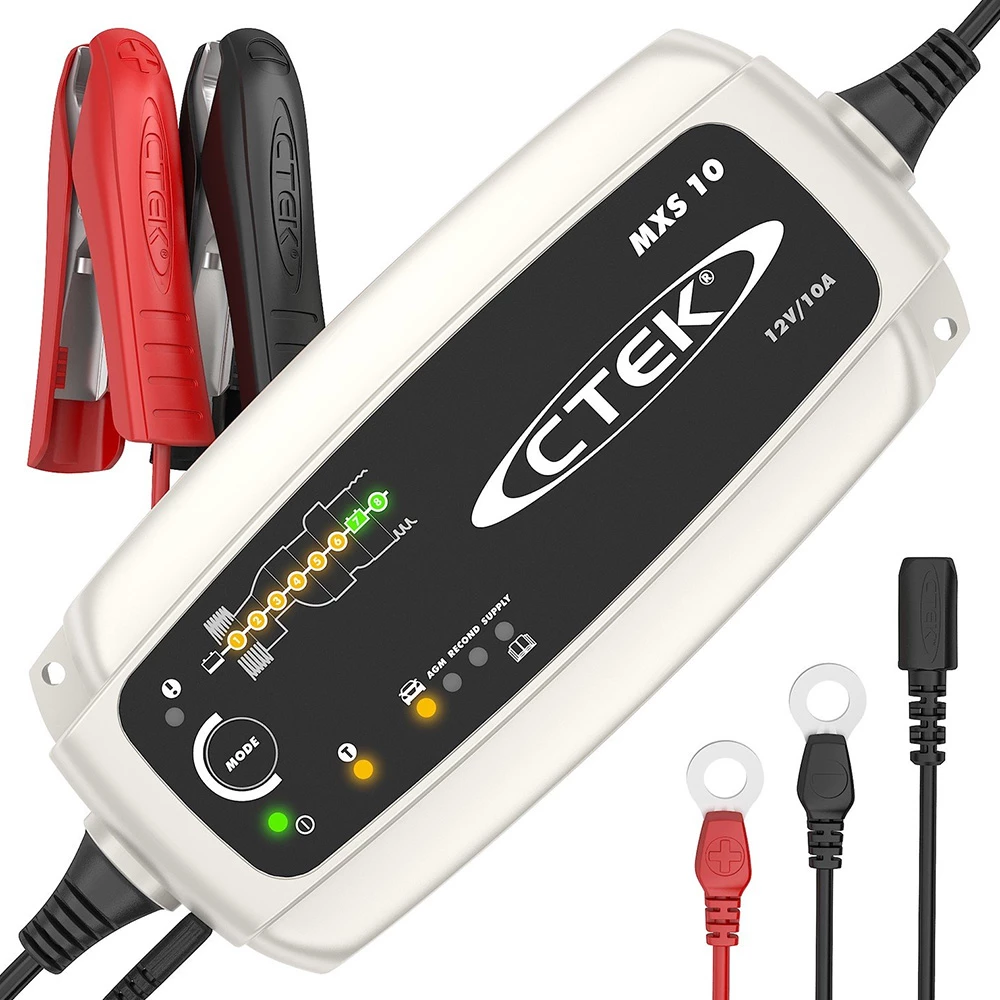

CTEK MXS 10 12V 10A 8-Stage Battery Charger

Fully automatic 8-step charger

The CTEK MXS 10 12V-10A 8-Stage Battery Charger
offers state of the art technology. It’s ideal for professional use
and excellent in workshops, caravans, RVs, boats or cars. The MXS
10 is perfect for solving a broad range of battery problems. It
offers features such as battery diagnosis that shows if a battery
can receive and retain a charge, a special reconditioning function
that restores stratified and deeply discharged batteries, unique
maintenance charging and a temperature sensor for optimised
charging regardless of the weather conditions. It also has a power
supply mode which allows the battery to be disconnected from the
vehicle without losing important configurations. The unique display
allows the user to follow the entire charging process.

The MXS 10 is a fully automatic 8-step charger
that delivers 10A to 12V batteries from 20-200Ah and is suitable
for maintenance charging up to 300Ah. The charger is IP 65
classified (splash and dust proof), designed to protect vehicle
electronics and non-sparking, reverse polarity protected and
short-circuit proof. It is delivered with a 2-year warranty.

CTEK MXS 10 12V-10A 8-Stage Battery Charger
Features:

• Auto: Fully automatic for optimal charging
• 12V: For all lead-acid batteries
• Step 7: Fully charged battery
• Step 8: Maintenance charging
• Temperature sensor
• COLD/AGM: Charging in cold conditions and AGM
  batteries
• RECOND: Recondition of deeply discharged batteries
• SUPPLY: Use the charger as a power supply
• Works on all the C-Tek units with the same connection
  plug
• Internal fuse

CTEK MXS 10 12V-10A 8-Stage Battery Charger

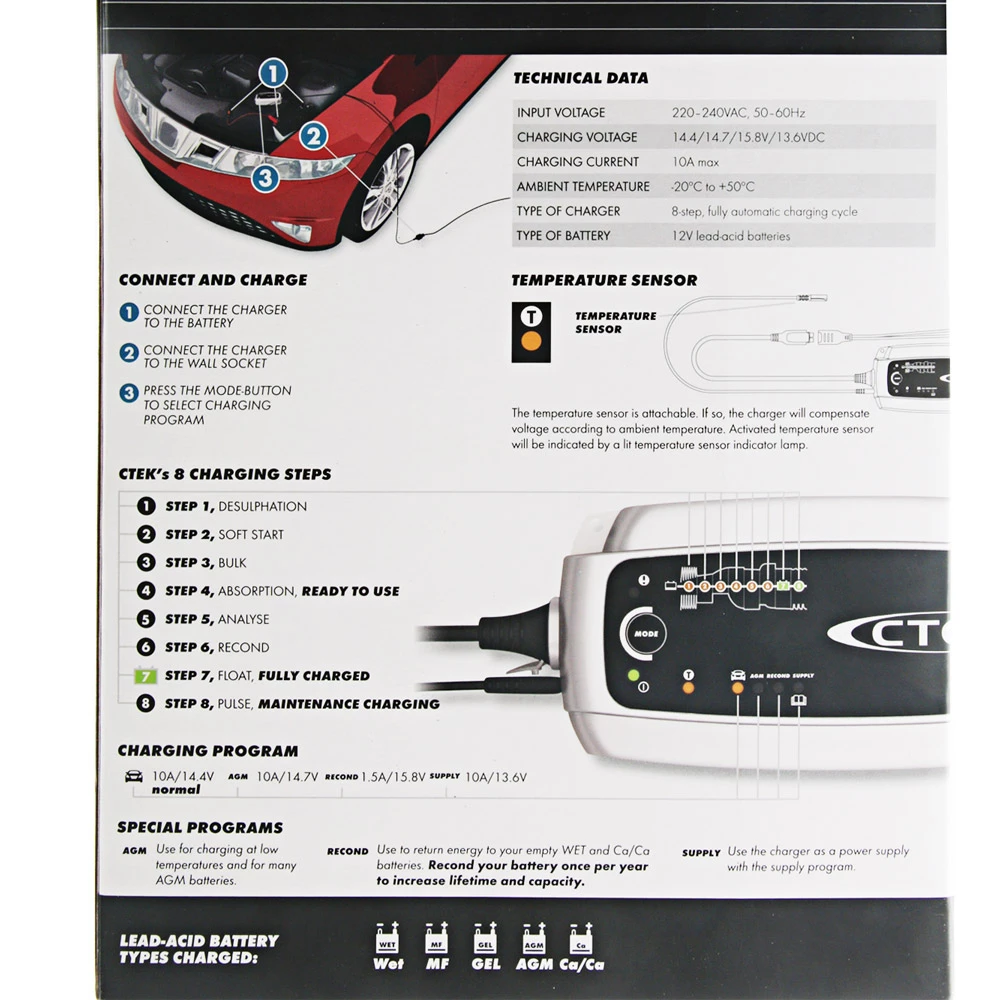

Specifications:

• Volt: 12V
• Rated Voltage: AC 220-240VAC, 50-60Hz
• Charging voltage: NORMAL: 14.4V, COLD/AGM: 14.7V, RECOND:
  15.8V, SUPPLY: 13.6V
• Min battery voltage: 2.0V
• Charging current: 10A max
• Current, mains: 1.0A rms (at full charging current)
• Back current drain: <1Ah/month
• Ripple: <4%
• Ambient temperature: -20 degreesC to +50 degreesC, output power
  is reduced automatically at high temperatures
• Charger type: 8 step, fully automatic charging cycle
• Battery types: All types of 12V lead-acid batteries (WET, MF,
  Ca/Ca, AGM and GEL)
• Battery capacity: 20-200Ah, up to 300Ah for
  maintenance
• Dimensions: 197 x 93 x 49mm (L x W x H)
• Insulation class: IP65
• Weight: 0.8kg
