CTEK Multi XS 3600 4-Stage Smart Battery Charger For Seahorse Kontikis

Smart charging for everyday use

The CTEK Multi XS 3600 4-Stage Smart Battery
Charger is a versatile battery charger in a compact format
that makes it convenient and easy to charge and maintain all
household vehicles. The special cold mode means that you can also
charge during cold winter days without problems. The Multi XS 3600
only takes four basic steps to fully charge all batteries.

Desulphation
Runs a complete charge cycle within a fraction of a second. The
cycle repeats during the whole desulphation phase. Every cycle
recovers some lead sulphate into useful material.

Bulk
Charging where 80% of the energy is returned. The charger delivers
a constant current until the battery voltage has reached the set
level.

Absorption
Final part of the charge up to 100%. The battery voltage is kept
constant at the set level, during which time the current drops
gradually.

Pulse
Maintenance charging. The state of charge varies between 95% and
100%. A pulse is sent out to the battery if the voltage drops. This
keeps the battery in trim when not in use. The charger can be
connected for months at a time.

Seahorse is now exclusively using C-TEK Chargers, and recommend
them for charging Seahorse batteries, and it can charge up to 3
batteries at any one time.

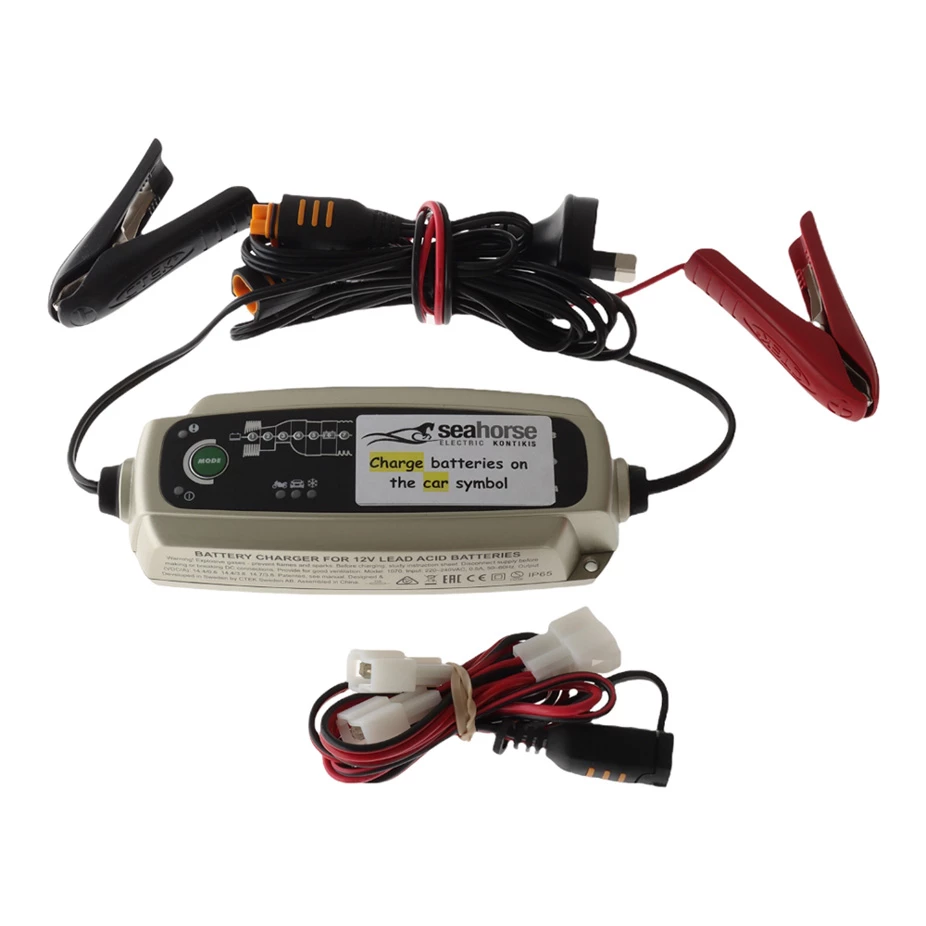

CTEK Multi XS 3600 4-Stage Smart Battery Charger
Features:

• Four step, fully automatic switch mode model
• Charges lead-acid batteries (Wet, MF, GEL and AGM) from 1.2Ah
  to 120Ah
• Maintenance pulse charging increases battery life and gives
  superb performance
• Charges even drained batteries
• Pulse recover of slightly sulphated batteries
• Three unique charging modes for use on small batteries, large
  batteries and a special cold mode that is also suitable for AGM
  batteries
• Low back current drain, low ripple and input voltage
  independent (170-260V)
• High efficiency: 85%

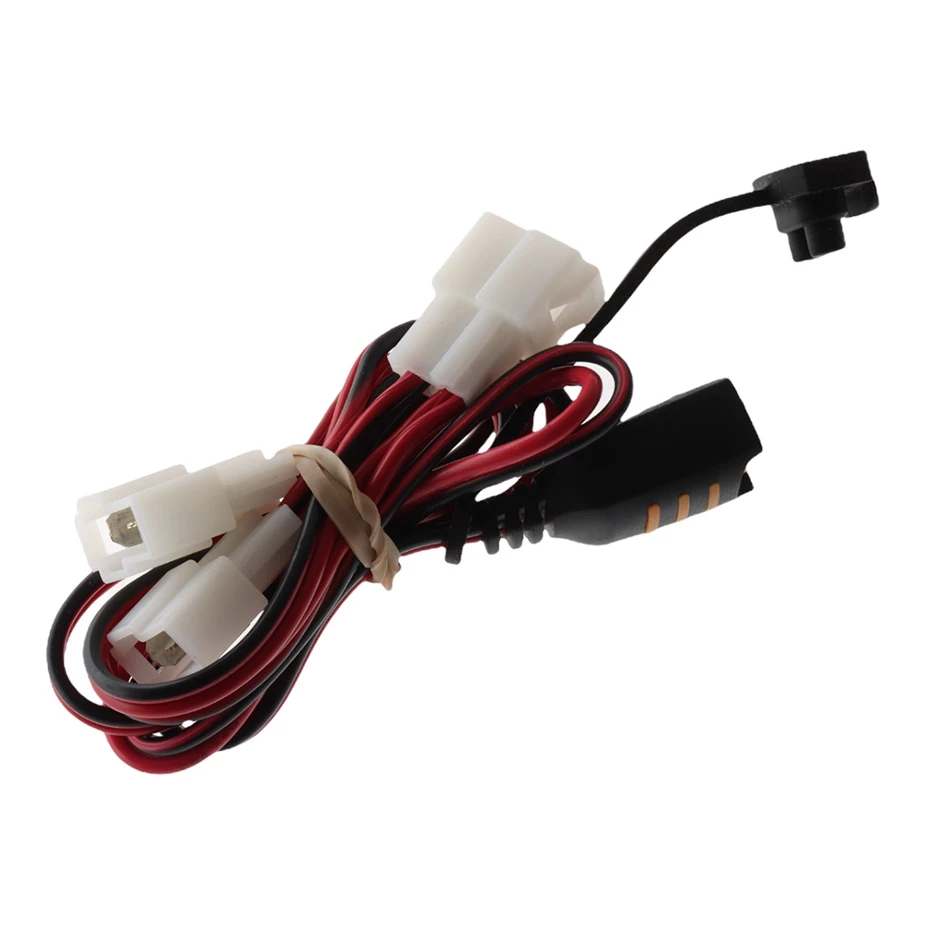

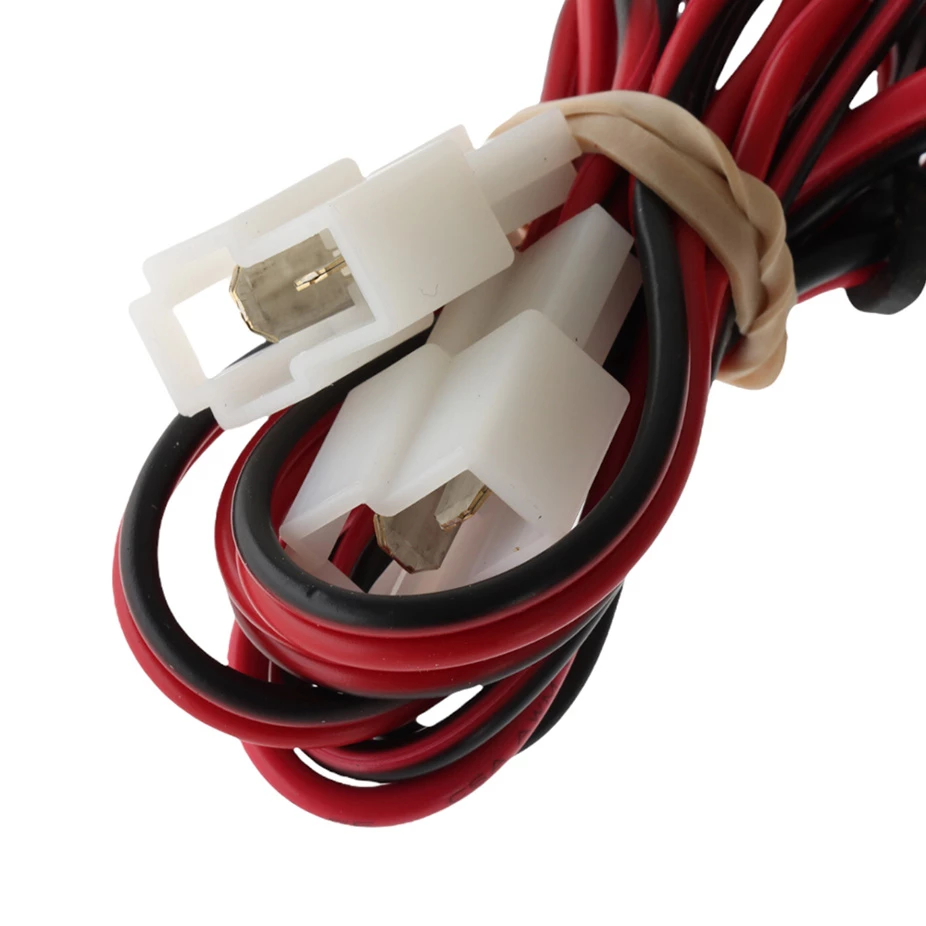

• Delivered with two interchangeable connection leads, one with
  clamps, and one with eyelet terminals
• The charger can be connected for months, ideal for seasonal
  vehicles
• Compact design with mounting holes for permanent
  assembly
• 5 year warranty

CTEK Multi XS 3600 4-Stage Smart Battery Charger
Specifications:

• Input voltage: AC 220-240VAC, 50-60Hz
• Charging voltage: 12V
• Sulphated battery recovery: Yes
• Bulk charge rate: 0.8A/3.6A
• Peak charge with minimal fluid loss: 14.4V/14.7V
• Pulse maintenance for maximum battery life: Yes
• Current ripple: 3%
• Back current drain (Ah/month): <1
• Minimum battery current rating: 1.2Ah
• Maximum battery current rating (charging): 75Ah
• Maximum battery current rating (maintenance): 120Ah
• Dimensions (LxWxH): 165 x 61 x 38 mm
• Weight: 0.5kg
• Insulation: Splash and dust-proof
• Quick coupling: Yes

Note: Ring connectors sold separately.
