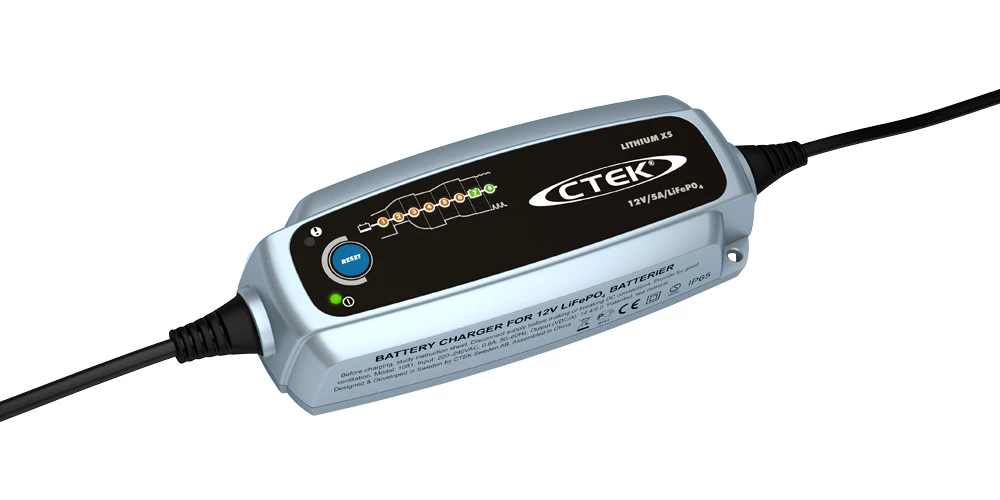

CTEK Lithium XS Battery Charger 12V 5A

Simple Lithium charging

The CTEK Lithium XS Battery Charger is an advanced
microprocessor controlled charger and maintainer specially designed
for Lithium (12V LiFePO4) batteries.

The LITHIUM XS is specially designed for Lithium (12V LiFePO4)
batteries. With up to 5A of charge current available, it can charge
LiFePO4 batteries from 5Ah to 60Ah and maintain up to 120Ah. It’s
easy to use – just connect it and charging starts immediately.
There’s no need to disconnect your battery and any low voltage
protection electronics will be reset automatically. The LITHIUM XS

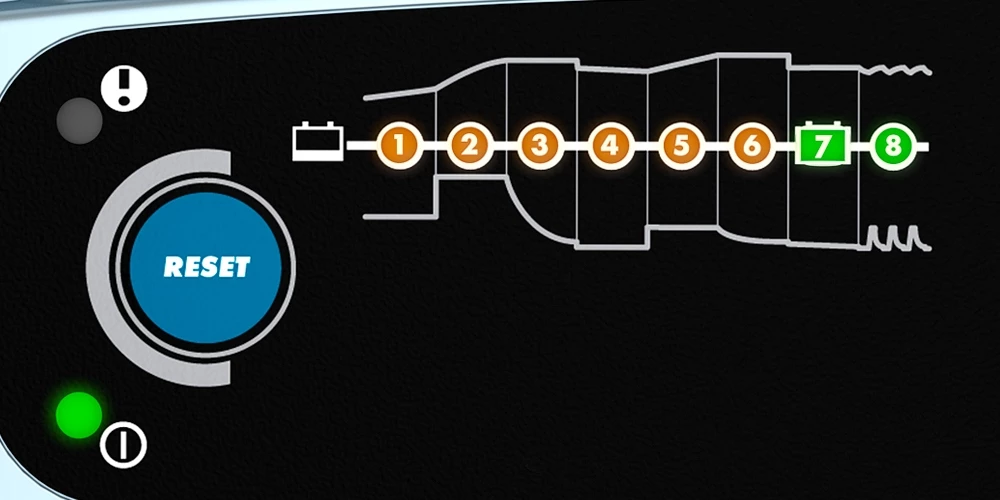

is a connect and forget’ charger with 8 charging steps, a testing
sequence that tells you if the battery can take and retain the
charge, a unique maximisation step to restore full capacity and
patented maintenance charging for maximum performance, even after
months of inactivity.

CTEK Lithium XS Battery Charger Features:

• Easy to use – just connect and forget
• Unique 8 step charging for maximum performance and extended
  life
• Safe spark free operation
• Exceptionally clean voltage and current delivery with no surges
  or spikes
• 5-year warranty

CTEK Lithium XS Battery Charger
Specifications:

• Ambient temperature: -20 degreesC to +50 degreesC
• Positioning: Portable (mounting possible)
• Warranty: 5 years
• Input: 220-240 VAC, 50-60 Hz, 0.65 A max
• Output: 13.8/14.4 V, 5.0 A max
• Back current drain: Corresponding to less than 1 Ah/month
• Battery types: 12 V:, LiFePO4
• Battery capacity: 5-120 Ah
• Insulation class: IP65
