CruzPro WTP-65 Precision Sea Water Temperature Gauge

User-friendly and easy to install

The CruzPro WTP-65 Precision Sea Water Temperature
Gauge displays sea water temperature from 32.0 deg F (0.0
deg C) to 90.0 deg F. (32.0 deg C) in tenths of a degree. The units
of display is easily selected with a removable jumper wire at the
back of the instrument. The WTP65 has a built-in red backlight for
night-time viewing and works on both 12 and 24 VDC systems. Best of
all, it’s very easy to install, requiring only a 2-1/8inch (55mm)
hole saw and screwdriver to connect.

Note: Outputs NMEA 0183 serial data.
Requires a transducer sold separately. BOL-1, THT-2 or
TMT-1.

CruzPro WTP-65 Precision Sea Water Temperature Gauge
Specifications:

• Operating Voltage: 9.5 – 33.0 VDC
• Current Drain: 0.018 amps nominal
• Display: 4 digit LCD, red LED backlighting
• Accuracy: +/- 0.1 deg F or C (adjustable by user)
• Range: 32.0 deg F (0.0 deg C) to 90.0 deg F (32.0 deg
  C)
• Sensor: Standard 10Kohm NTC thermister. Bronze and plastic
  versions available separately.
• Data Output: NMEA 0183 serial 4800 BAUD, $VWMTW
• Size: 2.5” dia X 4.1” deep (61mm x 104mm)
• Mounting: 2-1/8” (55mm) round hole

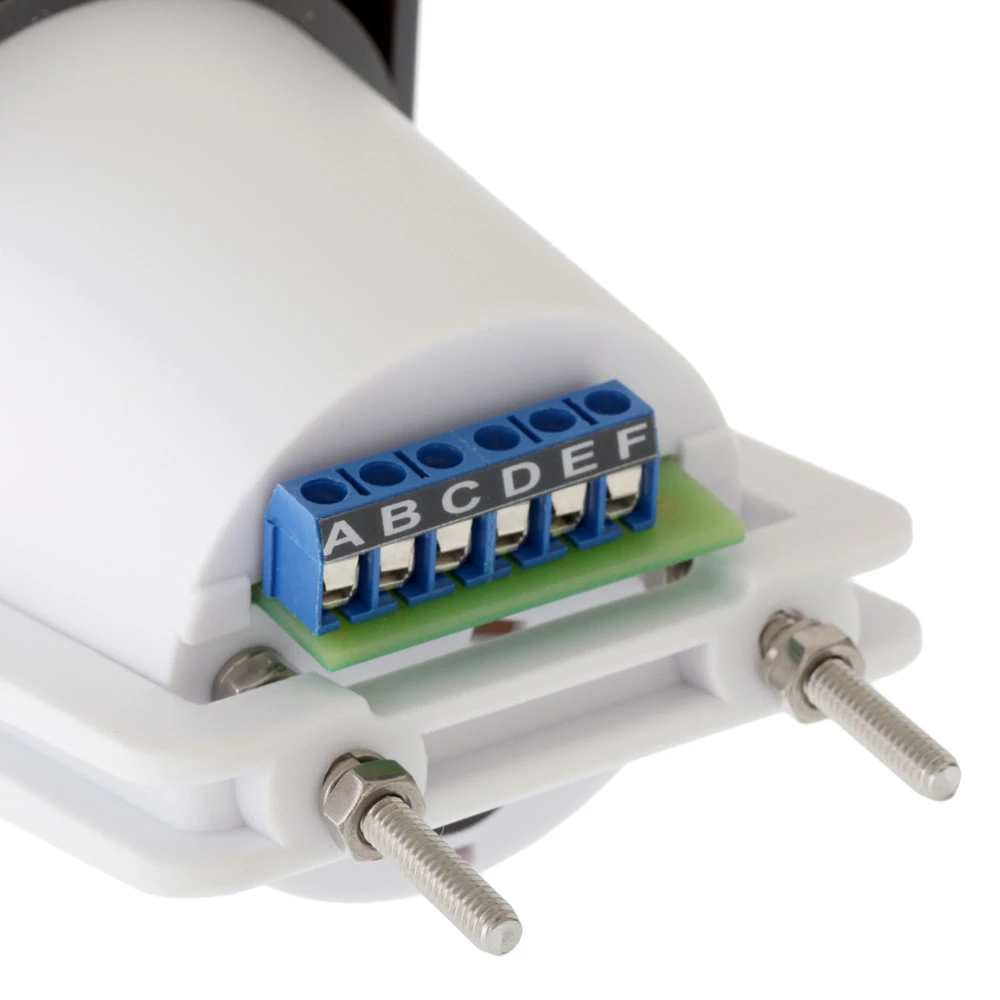

Connection Diagram:
