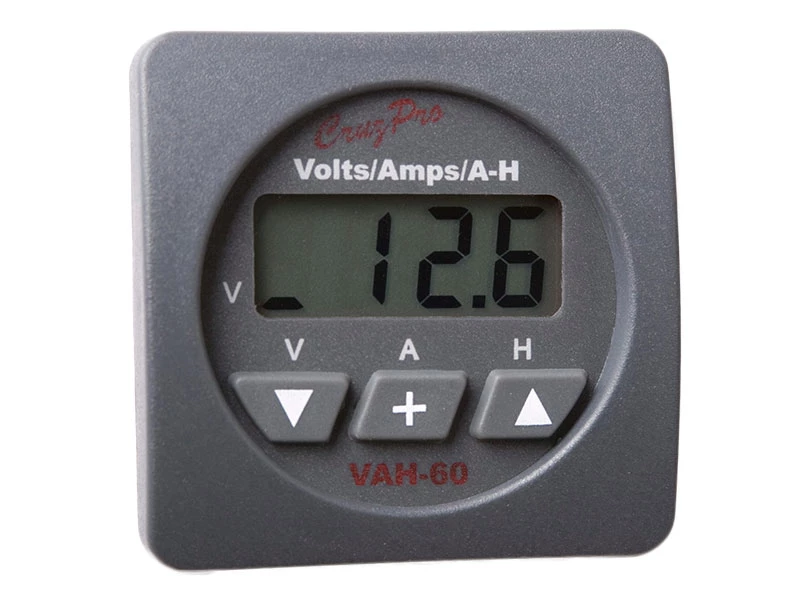

CruzPro VAH-60 DC Power Management Instrument

The VAH60 displays battery voltage and charging or discharge
current and tells you how much battery capacity has been consumed
and how much is remaining.

Built in Peukert’s Law battery efficiency factor corrections for
more accurate time remaining information.

You can set Low and High voltage alarms and Low Amp-Hours
Remaining alarms. When activated built-in 85 dB alarm will sound
and the display will flash.

With a press of the button you can display battery voltage,
current being delivered to or draining from the battery, the number
of amp-hours remaining in the battery bank or the percentage charge
remaining.

Outputs digital NMEA 0183 serial data. This information can be
used to log performance or repeat the display information at a
remote location on the CruzPro RP60 and/or RP110 data
repeaters.

For batteries banks between 9.5 and 33 Volts. Battery bank size
100 to 3000 Amp-Hours.

5 levels of backlight (including OFF) can be selected from the
front panel.

The units are factory calibrated, if required this can be
adjusted over a wide range using the front-panel switches to suit
your particular needs. All calibration data is saved to
non-volatile memory.

Available with round or square bezels.

Specifications:

• Operating Voltage: 9.5 – 33.0 VDC (Higher voltage versions
  available by special order)
• Current Drain: 0.018 amps nominal
• Display: 4 digit LCD, 5 levels of backlighting
• Data: Volts, Amps, Amp-Hours, percentage charge remaining
• Ranges: 9.5 to 33.0 VDC, -150 to +150 Amps, 0 to 3000
  Amp-Hours, 0-100% charge remaining
• Battery Size: 100 to 3000 Amp-Hours, programmable
• Data Ouput: NMEA 0183 serial 4800 BAUD, $IIXDR,V; $IIXDR,A;
  $IIXDR,G
• Alarms: Built-in 85 dB audible alarm. Settable high and low
  voltage alarms and low charge alarm.
• Size: 2.5”’ dia X 4.1”’ deep (61mm x 104mm)
• Mounting: 2-1/8”’ (55mm) round hole
