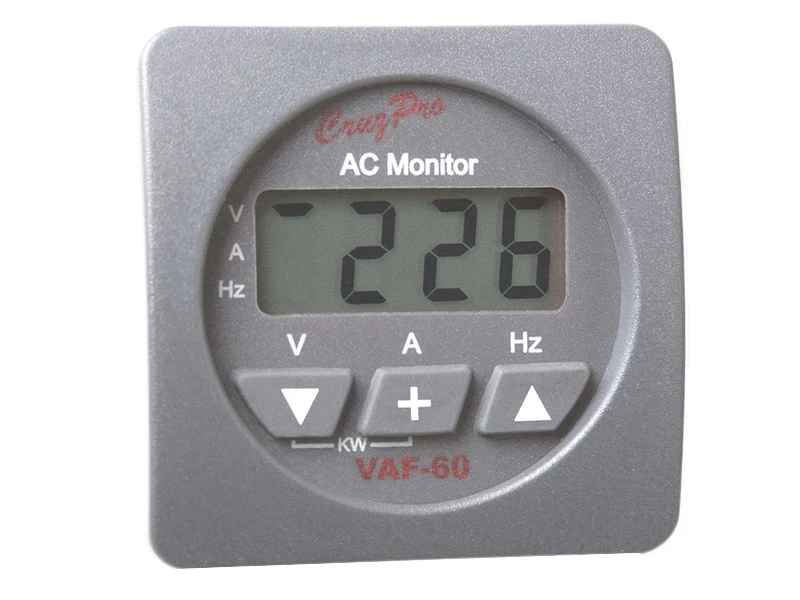

CruzPro VAF-60 AC Power Management Instrument

The VAF60 Digital AC Monitor provides accurate low cost digital
instrumentation for AC volts, amps, frequency and kW.

The VAF60 displays AC voltage from 90 to 300 VAC RMS, AC current
from 0 to 150 amps, AC frequency from 40 to 70 Hz and computes
volt-amps (kW) from 0.0 to 45.0 kW.

You can set Low and High voltage alarms and Low and High
frequency alarms. When activated, the built-in 85 dB alarm will
sound and the display will flash.

You can use the built-in generator cut-out output from the VAF60
to automatically shut down a faulty or out-of-condition
generator.

NMEA 0183 serial data at 4800 BAUD of AC Volts, Amps, Frequency
and kW for remote monitoring of the data.

Five levels of backlighting can be selected.

Comes with both voltage and current transformers to measure ac
volts and ac current.

The VAF60 draws only 0.017 amps can be powered from any 9.5 to
33.0 VDC power source.

Specifications:

• Operating Voltage: 9.5 – 33.0 VDC
• Current Drain: 0.018 amps nominal
• Display: 4 digit LCD, 5 levels of backlighting with external
  backlight on/off control
• Data: AC Volts, Amps, Frequency, kW Outputs NMEA 0183 serial
  data
• Data Ouput: NMEA 0183 serial data output at 4800 BAUD of:
  $IIXDR,I,aaaa,A,VAF30,CS – AC Amps $IIXDR,F,bb.b,H,VAF30,CS – AC
  Frequency $IIXDR,G,cc.c,,VAF30,CS – AC Killowats
  $IIXDR,U,ddd,V,VAF30,CS – AC Volts
• Ranges: 90 – 300 VAC, 0 to +150 Amps, 40 – 70 Hz, 0.0 – 45.0
  kW
• Alarms: Built-in 85 dB audible alarm. Settable high and low
  voltage alarms, high and low frequency alarms. high kW alarm.
• Outputs: User selectable choice of automatic generator cut-off
  or NMEA 0183 serial data output of AC Volts, AC Amps, Frequency and
  kW
• Size: 2.5” dia X 4.1” deep (61mm x 104mm)
• Mounting: 2-1/8” (55mm) round hole
