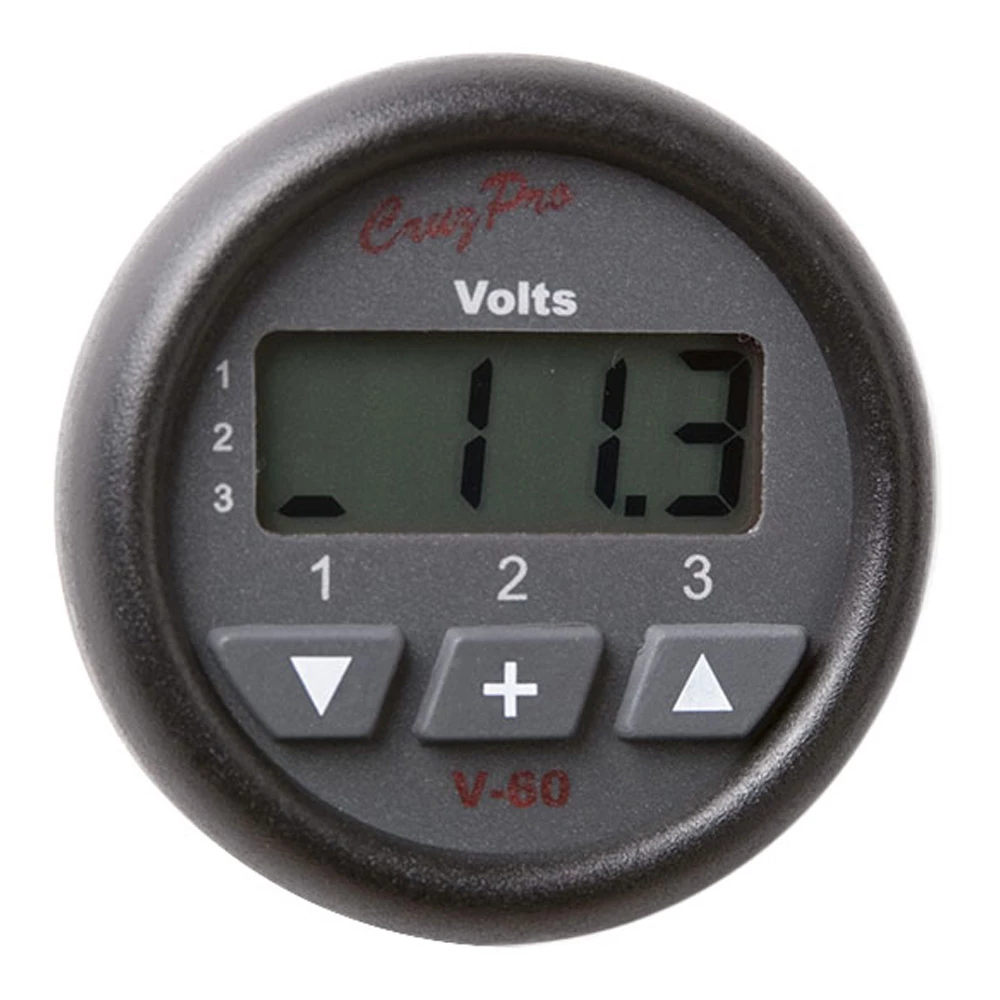

CruzPro V-60 3 Bank Voltmeter

The V60 Digital Volts Gauge provides accurate low cost digital
instrumentation for three banks of batteries between 9.5 and 33
Volts.

You can set independent Low and High voltage alarms for each
bank When activated, the built-in 85 dB alarm will sound and the
display will flash.

Five levels of backlighting can be selected.

The V60 draws only 0.017 amps and is designed to be left on
continuously.

The V60 outputs digital voltage data for each bank on the
standard NMEA 0183 serial data line at 4800 BAUD. This data can be
used to log performance or repeat the display information at a
remote location on the matching CruzPro RP60 and/or RP110 data
repeaters

Specifications:

• Operating Voltage: 9.5 – 33.0 VDC (Higher voltage versions
  available by special order)
• Current Drain: 0.018 amps nominal
• Display: 4 digit LCD, 5 levels of backlighting
• Data: Digital volts display for three banks of batteries
• Ranges: 9.5 to 33.0 VDC, any combination of 12 / 24 batteries
  Custom OEM versions to 60 VDC
• Data Output: NMEA 0183 serial 4800 BAUD, $IIXDR,V
• Alarms: Built-in 85 dB audible alarm. Settable independent high
  and low voltage alarms for each bank
• Size: 2.5”’ dia X 4.1”’ deep (61mm x 104mm)
• Mounting: 2-1/8”’ (55mm) round hole
