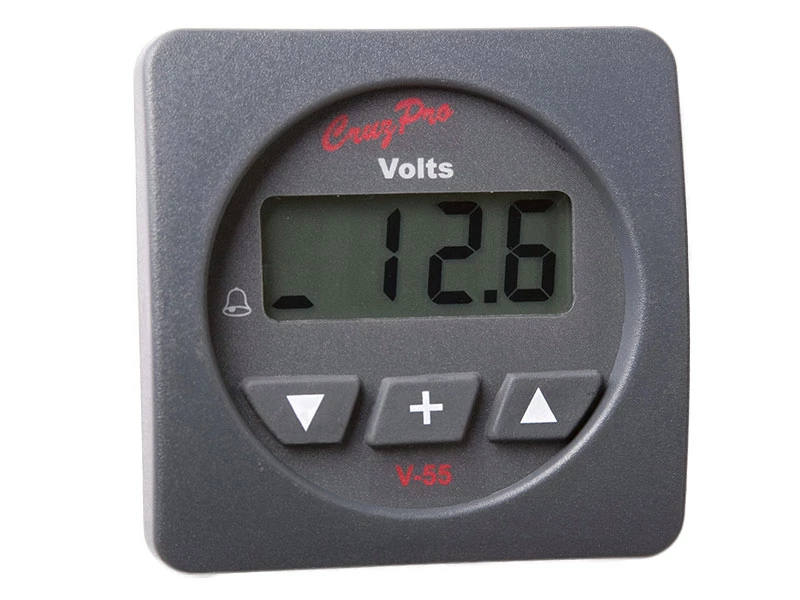

CruzPro V-55 Voltmeter

The CruzPro V55 Digital Volts Gauge provides accurate low cost
digital instrumentation for batteries between 9.5 and 33 Volts.

High and Low volts alarms can be set using the front panel
switches. The alarm can be turned ON/OFF with the press of a single
key. When activated, the built-in 85 dB alarm will sound and the
display will flash.

The V55 draws only 0.017 amps and can be left on
continuously.

Outputs digital voltage data in NMEA 0183 serial data line
format. This information can be used to log performance or repeat
the display information at a remote location on the CruzPro RP60
and/or RP110 data repeaters.

5 levels of backlight (including OFF) can be selected from the
front panel.

The units are factory calibrated, if required this can be
adjusted over a wide range using the front-panel switches to suit
your particular needs. All calibration data is saved to
non-volatile memory.

Available with round or square bezels.

Specifications:

• Operating Voltage: 9.5 – 33.0 VDC (Higher voltage versions
  available by special order)
• Current Drain: 0.018 amps nominal
• Display: 4 digit LCD, 5 levels of backlighting
• Data: Digital volts, high and low voltage alarm display
• Ranges: 9.5 to 33.0 VDC Custom OEM versions to 60VDC
• Data Output: NMEA 0183 serial 4800 BAUD, $IIXDR,V
• Alarms: Built-in 85 dB audible alarm. Settable independent high
  and low voltage alarms
• Size: 2.5” dia X 4.1” deep (61mm x 104mm)
• Mounting: 2-1/8” (55mm) round hole

Connection Diagram:
