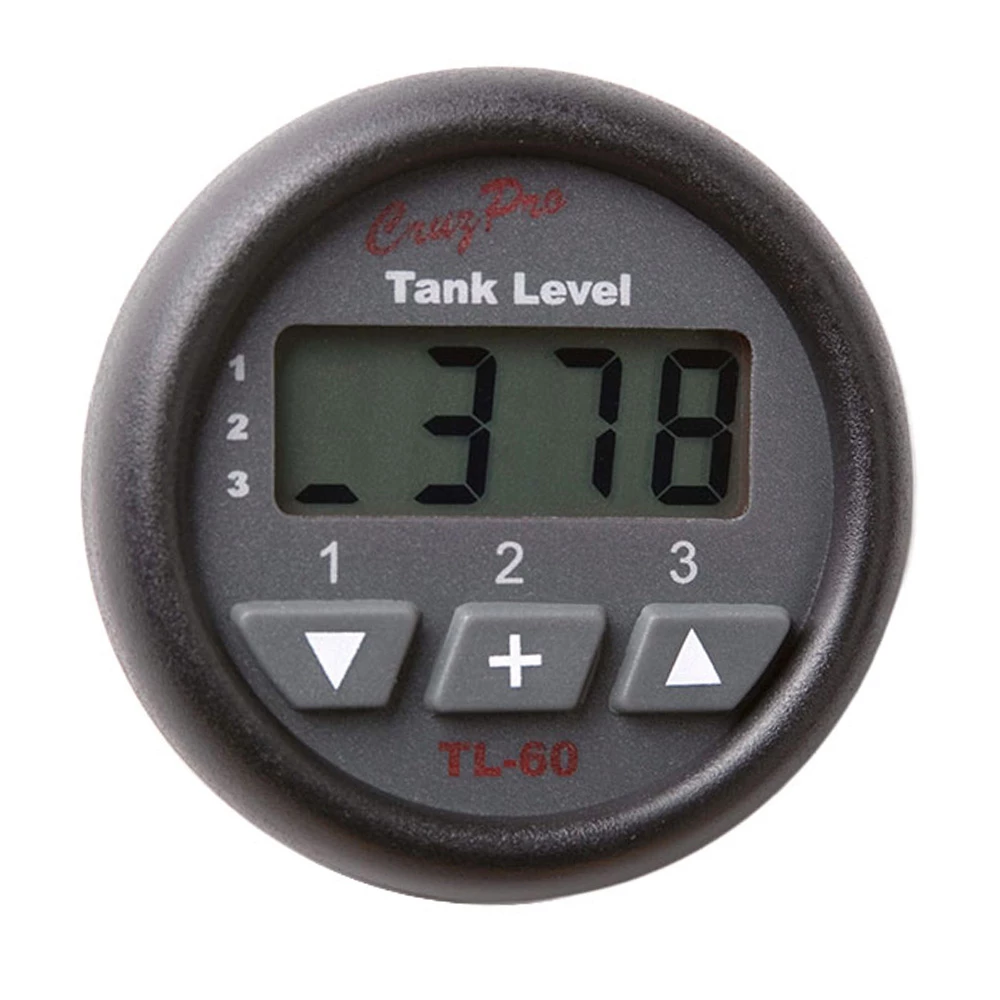

CruzPro TL-60 Tank Level Gauge For Three Tanks With Alarms

The Intelligent tank level gauge that always gives you an
accurate reading.

The CruzPro TL-60 has a unique ability that compensates for odd
shaped tanks (often found in boats and RV’s) and calculates the
true liquid level reading over the entire range from full to empty.
Never worry about running out again.

With a press of the button you can display liquid level (in
gallons, liters or %), for 3 independent tanks.

Low and High fuel alarms can be set for each tank independently
over the entire tank level range. When activated, the TL-60
built-in 85 dB alarm will sound and the display will flash. Enabled
or disabled with a single key press.

Each tank can be individually calibrated to accurately read any
shape tank. The calibration data is saved into a non-volatile
memory which retains the information if the power is turned
off.

Intelligent CruzPro gauges regulate the battery feed voltage to
get highly accurate sender readings free from voltage fluctuation
errors.

Works with standard senders: VDO, Teleflex, Faria, GM,
Stewart-Warner, Centroid THREE terminal senders, Aerotech and
others.

Up to five levels of back-lighting.

NMEA 0183 serial data output line or an external alarm output
that can be used for transfer pump control.

Operating voltage 9.5 to 33 volts and draws only 0.017 amps.

Available with round bezel or a square bezel.

Specifications:

• Operating Voltage: 9.5 – 33.0 VDC
• Current Drain: 0.018 amps nominal
• Display: 4 digit LCD, 5 levels of backlighting
• Data: Tank Level Display for Three Tanks
• Inputs: Tank Level Senders: All popular American and/or
  European senders. Senders may be mixed (self-learning), such as GM,
  VDO, Teleflex, Faria, Centroid THREE terminal senders, Aerotech,
  Stewart-Warner, etc. The TL60 is manufactured to work with any
  standard resistance type level sender having the following
  resistance ranges: 0-30, 0-70, 0-90, 10-73, 10-180,33-240, 40-250
  ohms (and their reverse 30-0, 70-0, 90-0, 73-10, 180-10, 240-33,
  250-40 ohms).
• Data Output: NMEA 0183 serial 4800 BAUD for each tank
  separately ($IIXDR sentence).
• Alarms: Built-in 85 dB audible alarm. Independent settable low
  and high level alarms for each tank.
• External Alarm Output: The NMEA 0183 data output terminal may
  be programmed as an external alarm output
• Size: 2.5”’ dia X 4.1”’ deep (61mm x 104mm)
• Mounting: 2-1/8”’ (55mm) round hole

Connection Diagram:

User
Manual
