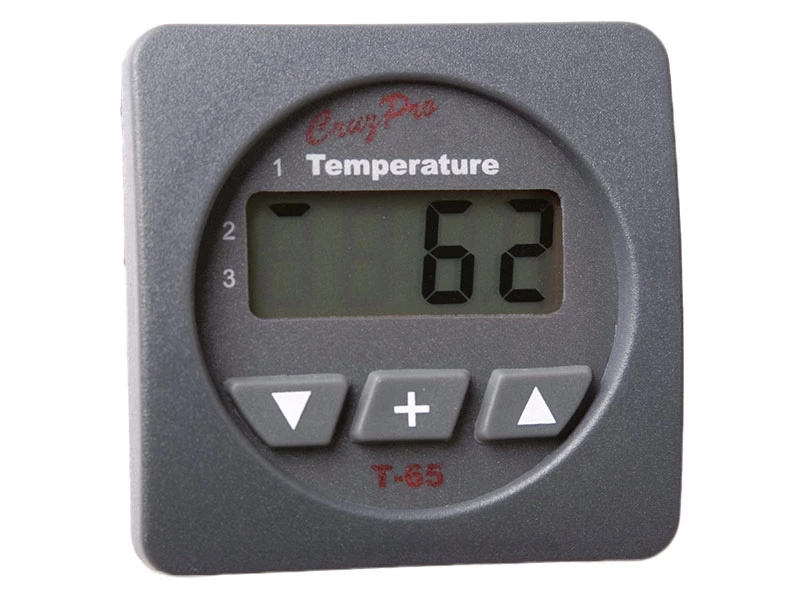

CruzPro T-65 Temperature Gauge For Three Areas

The CruzPro T65 digital temperature display continuously
monitors three separate sensors and displays temperature from -20
deg F (-29 deg C) to +140 deg F. (+60 deg C).

You can simultaneously monitor three zones such as bait tanks,
engine room temperature, refrigerators, freezers, sea water
temperature, inside cabin temperature, outside temperature, fish
holds, battery temperatures, etc.

Individual high and low alarms can be set for each area. When
activated, the built-in 85dB alarm buzzer will sound and the
display will flash.

The T65 is factory calibrated but can be user calibrated in the
field for each individual sensor for spot-on accuracy. All set-up
and calibration constants are saved to non-volatile memory

The T65 uses standard 10K NTC thermister temperature sensors
(the type most often used in speed/temperature and
depth/temperature transducers). Bronze thru-hull, plastic transom
mount and zinc plated bolt-on temperature transducers are available
separately.

Five-level red backlighting for easy night-time viewing.

Works on both 12 and 24 VDC systems.

Very easy to install, requiring only a 2-1/8inch (55mm) hole saw
and screwdriver to connect.

Outputs a separate NMEA 0183 serial data sentences for each
temperature zone at 4800 BAUD on rear screw terminal pin.

Specifications:

• Operating Voltage: 9.5 – 33.0 VDC
• Current Drain: 0.018 amps nominal
• Display: 4 digit LCD, red LED backlighting
• Range: -20 deg F (-29 deg C) to +140 deg F (+60 deg C)
• Accuracy: +/- 1 deg F or C (settable by user)
• Senders: Standard 10Kohm NTC thermister. Both bronze and
  plastic senders available separately.
• Alarms: Built-in 85dB alarm, individually settable high and low
  alarms for each of the three areas. IF NMEA 0183 serial data is not
  required, this output terminal may be user programmed as an
  external alarm output.
• Data Output: NMEA 0183 serial 4800 BAUD, a separate $IIXDR NMEA
  0183 sentence for each area
• Size: 2.5” dia X 4.1” deep (61mm x 104mm)
• Mounting: 2-1/8” (55mm) round hole

Connection Diagram:

User
Manual
