CruzPro T-60 Water Temperature Gauge With Alarm

Displays engine oil or water temperature

The CruzPro T-60 Water Temperature Gauge displays
engine oil or water temperature in degrees F or C. It has built-in
calibration curves for most popular temperature senders
manufactured by VDO, Teleflex, Faria, Stewart-Warner and
others.

Low and High temperature alarms can be set over the entire range.
When activated, the T60 built-in 85 dB alarm will sound and the
display will flash. All constants and calibrations are pre-set
during manufacture but you may alter these settings to suit your
particular needs. Calibrations can be altered over a wide range
using the front-panel switches. All information is automatically
saved to non-volatile memory.

With a press of the button you can display temperature (in deg F or
C), High and Low temperature alarm set-points.

CruzPro T-60 Water Temperature Gauge Features:

• Five levels of backlighting can be selected
• Data is output on an NMEA 0183 compatible serial data
  output
• The T60 draws only 0.017 amps
• Sender not provided with the instrument

CruzPro T-60 Water Temperature Gauge
Specifications:

• Operating Voltage: 9.5 – 33.0 VDC
• Current Drain: 0.018 amps nominal

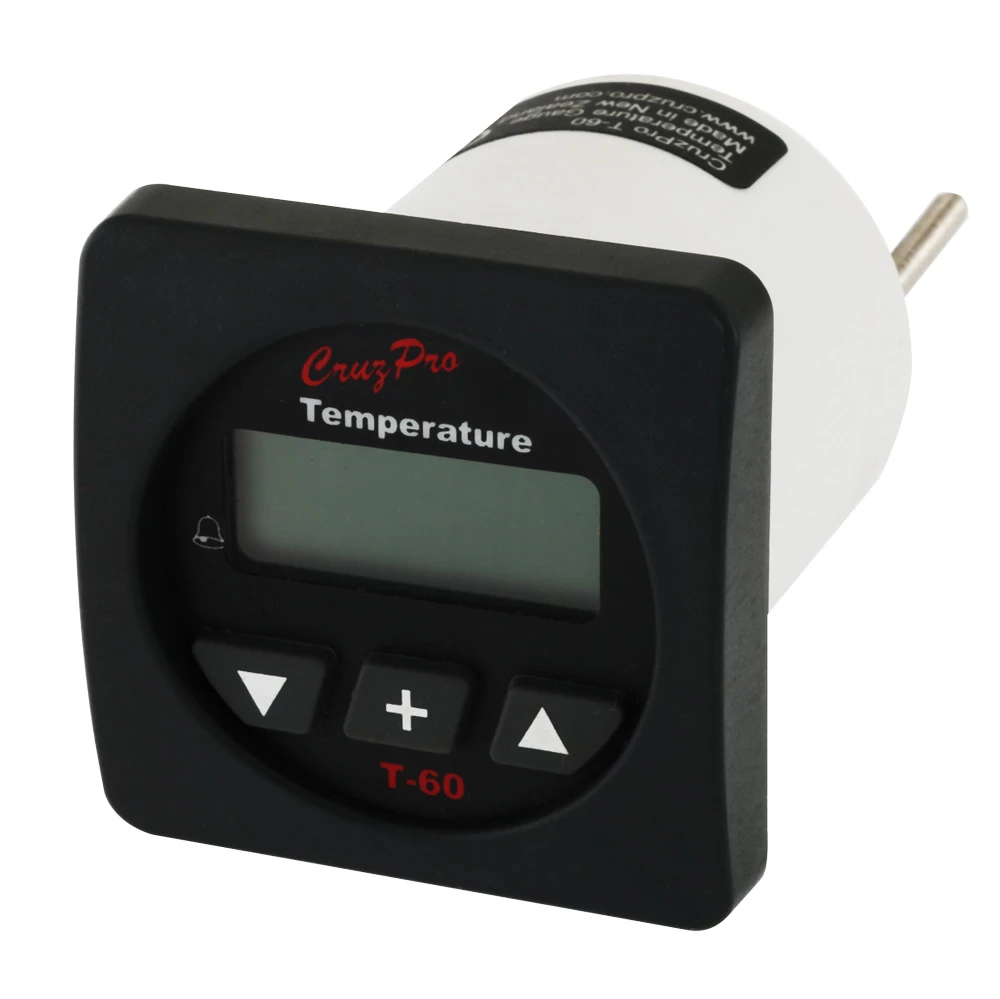

• Display: 4 digit LCD, 5 levels of backlighting
• Data: Temperature 32 to 300 degrees F (0 to 150 deg C) +/- 0.5
  deg F
• Inputs: Built-in calibration curves for all popular
  senders
• Data Ouput: NMEA 0183 serial 4800 BAUD
• Alarms: Built-in 85 dB audible alarm. Settable high and low
  temperature alarms. If NMEA 0183 serial data is not required, this
  output terminal may ba user programmed as an external alarm
  output.
• Size: 2.5”’ dia X 4.1”’ deep (61mm x 104mm)

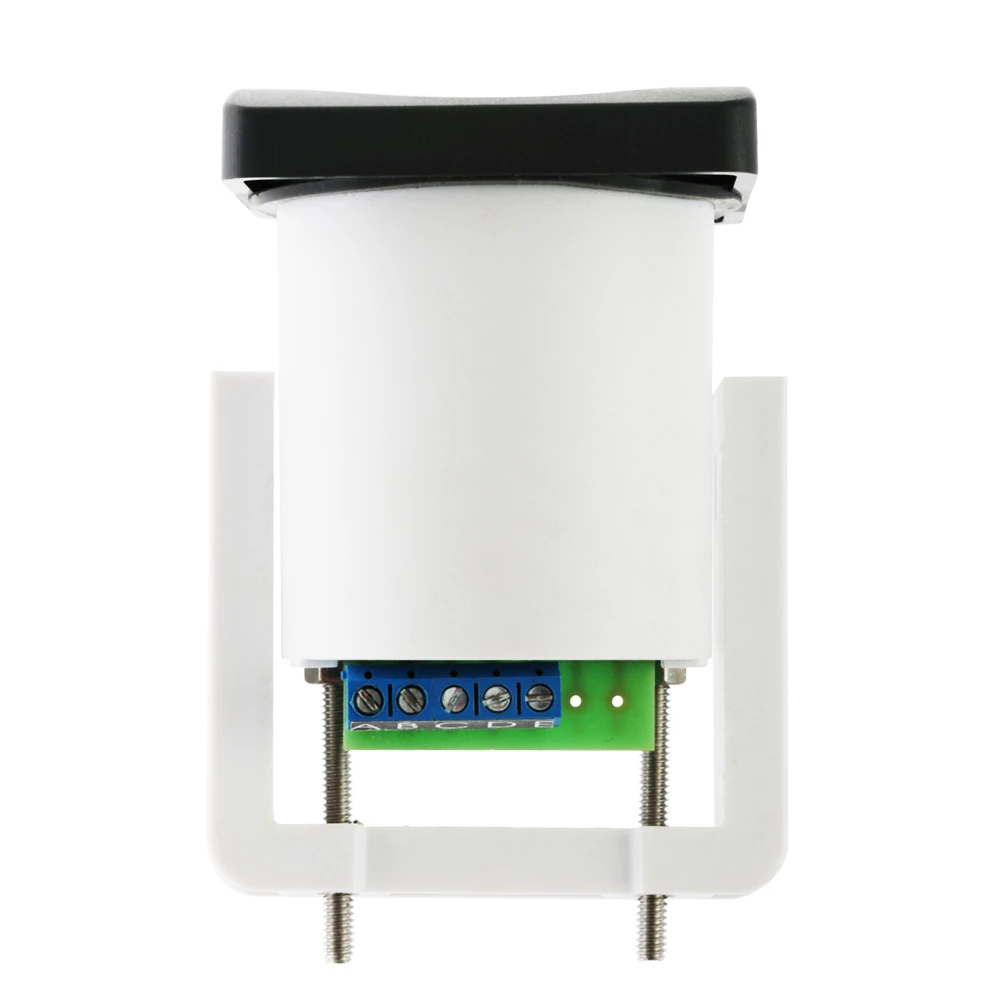

• Mounting: 2-1/8”’ (55mm) round hole
