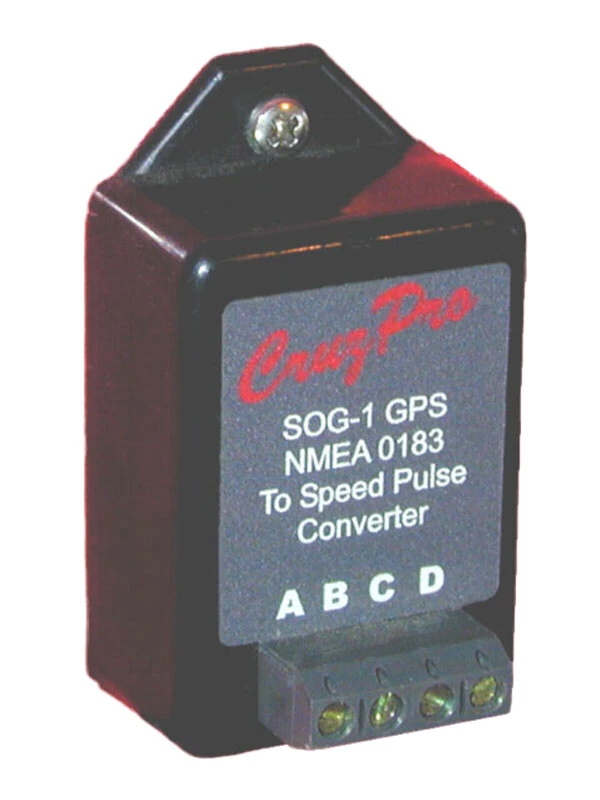

CruzPro Speed Over The Ground Paddlewheel Signal Converter

Always cleaning that paddle-wheels to remove marine growth or
weeds?

This is an alternative to the paddle-wheel speed transducer that
provides Speed Over the Ground in place of Speed Through the
Water.

A good backup if your paddle-wheel stops working.

The SOG1 takes the GPS data output and converts it to a
paddle-wheel signal. This enables you to display your Speed Over
the Ground on a standard analog or digital speed log. This provides
a more accurate estimate of time to get to your destination since
it is not affected by water currents.

Most marine GPS units have a NMEA 0183 output. The SOG1 uses the
NMEA 0183 $GPRMC sentence data to get accurate Speed over the
Ground information at 0.01 knots from 0.00 to 60.00 knots.

Powered by 12VDC and draws less than 0.020 amps.
