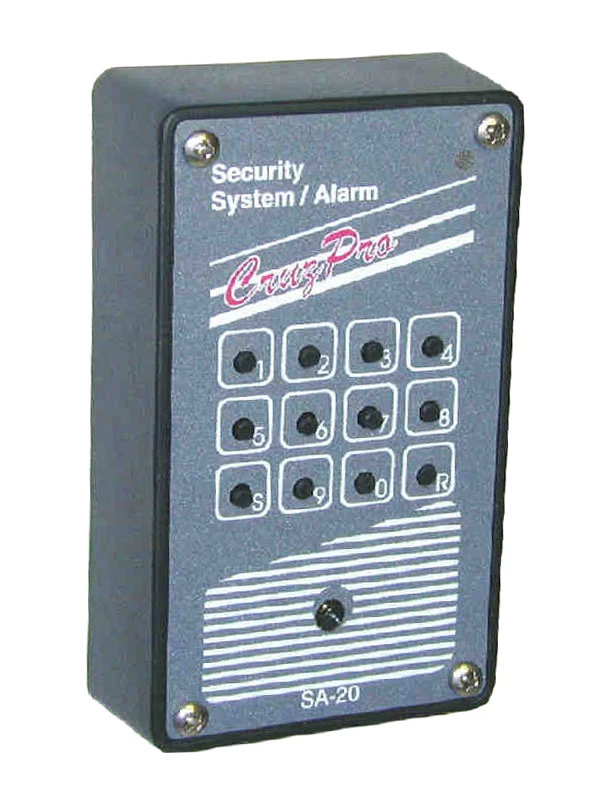

CruzPro SA-20 Security System

The SA-20 Security System provides cost effective security for
boats. Activated by an easy-to-operated digital access keypad, the
SA-20 connects to a wide variety of sensors from simple magnetic
reed switches to sophisticated passive infra-red (PIR)
detectors.

A blinking LED warns away most intruders before they attempt
entry. Program multiple security codes into the non-volatile memory
so you can tell who last entered the boat and how many times. It
also remembers how you want your system configured, desired entry
and exit delays, etc.

The SA20 draws only 0.015 amps and operates from a 9.5 to 33.0
VDC power source, making it ideal for boats.

Two sets of magnetic reed switches and one pressure sensing
switch are included with the SA-20 as standard. Use the reed
switches to detect if hatches or companion-way doors are opened.
The waterproof pressure sensing switch can be cockpit mounted to
detect intruders before entry.

The SA-20 is constructed of ABS plastic, stainless steel screws,
solvent resistant gaskets, Lexan brand polycarbonate and 3M
adhesives for a long life in the marine environment. The SA-20
draws only 0.015 amps and can be connected to the LA-20 external
Loud Alarm to provide inchcar alarm likeinch volume that can be
heard for 1/4 mile or more and flash your spreader, running or
anchor lights.

Specifications:

• Operating Voltage: 9.5 – 33.0 VDC
• Current Drain: 0.015 amps nominal.
• Operating temperature: 0 to 50 deg Celsius ( 32 to 122 deg
  Fahrenheit)
• Size: 100 x 60 x 30 mm (4 x 2.4 x 1.2 inch)
• Alarms: Built-in 85 dB audible alarm. Can be connected to
  optional External 105 dB Loud Alarm (LA-20)to add volume that can
  be heard 1/4 mile or more and flash spreader lights, running lights
  or anchor lights drawing up to 8 amps.
• Features: Multiple programmable security codes Programmable
  entry/exit delays Blinking LED Non volatile memory
