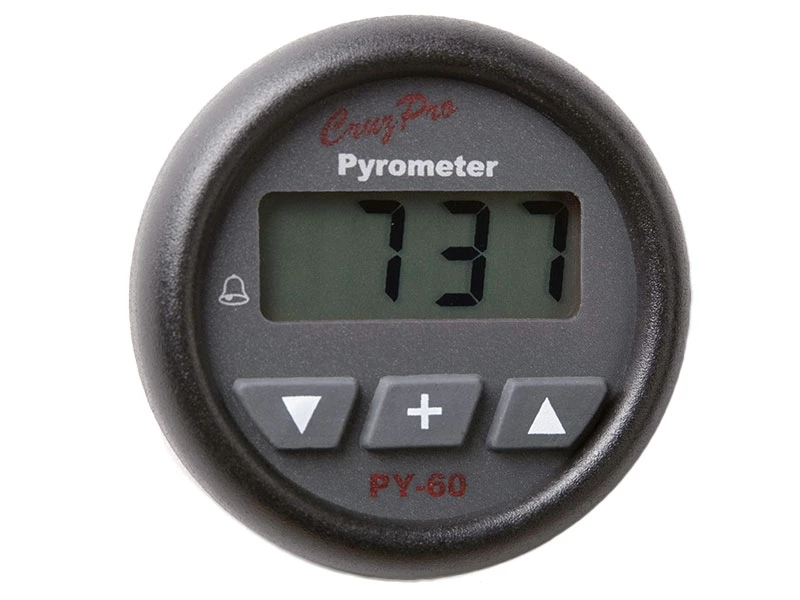

CruzPro PY-60 1200deg C Pyrometer

The PY60 pyrometer displays engine exhaust gas temperature.

With a press of the button you can display exhaust gas
temperature, High and Low temperature alarm set-points, and Maximum
temperature seen since last reset.

Low and High temperature alarms can be set over the full range.
When activated, the built-in 85 dB alarm will sound and the display
will flash. The alarms can be enabled or disabled with a single key
press.

Display in degrees F or C.

The PY60 outputs temperature on the standard NMEA 0183 serial
data line. This information can be used to log performance or
duplicate the display information at a remote location on the
CruzPro RP30, RP110 and MaxRP110 data repeaters.

5 levels of backlight (including OFF) can be selected from the
front panel.

Comes with an 1100 deg C type K thermocouple.

The units are factory calibrated, if required this can be
adjusted over a wide range using the front-panel switches to suit
your particular needs. All calibration data is saved to
non-volatile memory and will stay when the power is removed.

Available with round or square bezels.

The PY60 draws only 0.017 amps, 6.5 to 30.0 VDC

Specifications:

• Operating Voltage: 9.5 – 33.0 VDC
• Current Drain: 0.018 amps nominal
• Display: 4 digit LCD, 5 levels of backlighting
• Data: Temperature 32 to 2000 degrees F (0 to 1100 deg C) +/- 1%
  Maximum Temperature seen memory
• Inputs: Thermocouple (type K provided)
• Data Ouput: NMEA 0183 serial 4800 BAUD
• Alarms: Built-in 85 dB audible alarm. Settable high and low
  temperature alarms
• Size: 2.5”’ dia X 4.1”’ deep (61mm x 104mm)
• Mounting: 2-1/8”’ (55mm) round hole

Connection Diagram:
