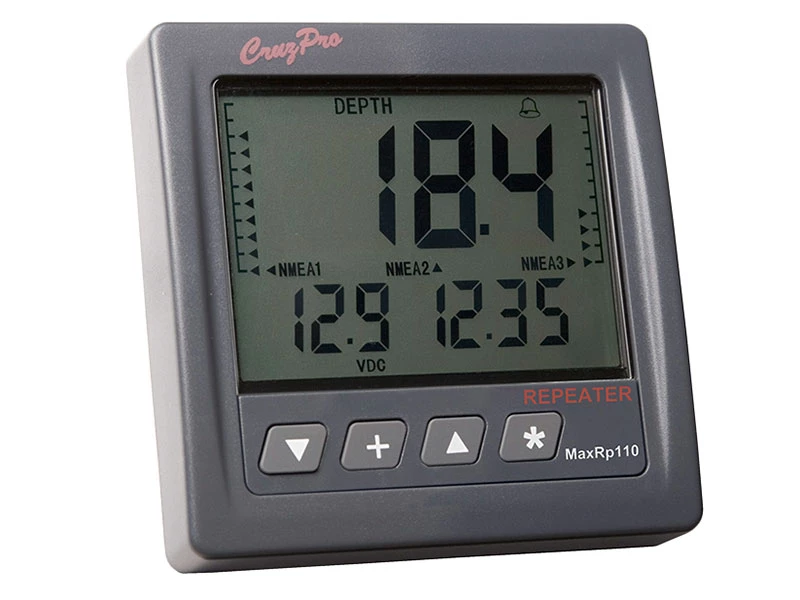

CruzPro MaxRp110 Multifunction Repeater

The MaxRp110 is many instruments at once in a space-saving 110mm
format. You simply select the display configuration that is best
suited for what you are doing.

You can display Depth, Boat Speed, Sea Water Temperature, GPS
Bearing to Waypoint, Distance to Waypoint, Wind Speed, Battery
Voltage, Tank Levels, all on one instrument.

Fully user configurable, you decide what to view on each display
with 16 different display configurations. The Windows software
provided with the MaxRp110 enables you to easily create and edit
the Display Configurations.

Programmable NMEA 0183 data repeater with the ability to repeat
over 5800 different NMEA 0183 sentences.

The MaxRp110 will simultaneously monitor four input channels for
two different sentences per channel and simultaneously display NMEA
data on three digital displays and two barcharts.

The MaxRp110 does NOT require any external inchBlack Boxinch or
inchPCinch to work, all the electronics required are within the
compact MaxRp110 case.

High and low alarms can be set on each of the five sets of
displayed data. Built-in alarm will sound and that display will
blink providing you both a visual and audible warning of a
problem.

Easy configuration from your laptop or PC with the windows
software the via RS232 or USB port.

Specifications:

• Operating Voltage: 12/24 VDC
• Current Drain: 0.025 – 0.060 amps nominal depending on
  backlight level
• Operating Temperature: 32 to 122 deg F (0 to 50 C)
• NMEA 0183 Sentences: Recognizes more than 5800 sentences
• Display: 3 digital displays and 2 bar charts, 5 levels of
  backlighting with external backlight on/off control
• 4 Input Channels and can search each channel for 2 different
  Sentences: NMEA #1 input A NMEA #1 input B NMEA #2 input A NMEA #2
  input B NMEA #3 input A NMEA #3 input B NMEA #4 input A NMEA #4
  input B
• Alarms: Built-in 85 dB audible alarm Settable Low and High
  alarms for each input sentence
• Display Damping: Programmable Display Damping for Four NMEA
  0183 Sentences
• Size: 4.3” x 4.3” (110m x 110mm)
• Mounting: 2-1/8” (54mm) round hole
