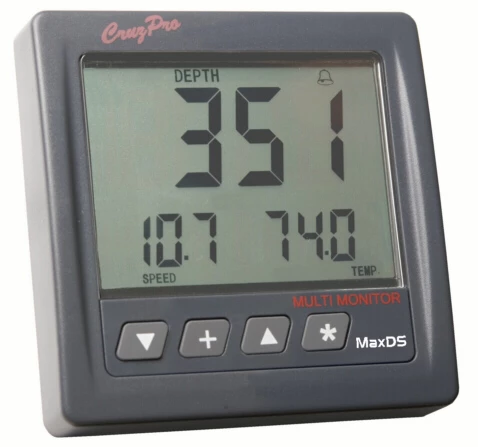

CruzPro MaxDS110 Multifunction Instrument

The MaxDS110 multifunction depth/speed instrument will
simultaneously display three sets of data on three digital
displays.

Unlike some other inchdumbinch displays, the MaxDS110 does NOT
require an external Black Box or PC to work. All the electronics to
measure and display all the data is contained within the compact
MaxDS110. Just connect the sensors and you have a complete set of
instrumentation. The multi-core MaxVu110 contains five computers
sharing data to provide a fast response to your changing
instrumentation needs.

Individual high and low alarm values can be set on each of the
data. When data on any of the displays falls outside the acceptable
range the built-in alarm will sound and that display will blink
providing you both a visual and audible warning of a problem.

The MaxDS110 is ten instruments in one space-saving 110mm
format. You simply select the display configuration that is best
suited for what you are doing. With simple, quick installation in a
standard 2-1/8 (54mm) round hole, the MaxDS110 is perfect for the
boat builder or aftermarket replacement.

Displays depth, boat speed, sea water temperature, trip and
total logs, race timers, time-of-day, elapsed trip time and battery
voltage.

Sixteen different predefined display configurations.

High and Low alarms can be set for depth, boat speed, water
temperature and battery voltage.

Eight (8) different Time-Of-Day alarms can be set to remind you
of important radio schedules, weather reports, etc. The two race
timers can be independently set to any value from 1 to 60
minutes.

A keel offset can be programmed to provide the depth of the
water under the keel. Variable display damping (filtering) can be
selected for both depth and boat speed.

Changes are automatically saved to a nonvolatile memory.

Five backlight levels (including OFF)

The MaxDS110 works on both 12 and 24 VDC

NMEA 0183 data sentences for depth, boat speed, sea water
temperature and battery voltage.

A variety of different optional depth and speed/temperature
transducers are available in plastic and bronze that mount on the
transom or through the hull.

Specifications:

• Operating Voltage: 12/24 VDC nominal
• Current Drain: 0.095 – 0.15 amps nominal depending on backlight
  level and number/type of senders
• Operating Temperature: 32 to 122 deg F (0 to 50 C)
• Display: 3 digital displays, 5 levels of backlighting with
  external backlight on/off control
• Built-in circuitry to display:
  • Battery Bank Volts
  • Boat Speed
  • Depth (from NMEA sentence)
  • Eight settable time-of-day alarms
  • Elapsed Trip Time
  • Race Timer #1
  • Race Timer #2
  • Seawater Temperature
  • Time-of-Day Clock
  • Total Log
  • Trip Log
• Settable Display Damping for: Boat Speed, Depth.
• Units of Measure: Knots, MPH, Km/Hr Deg F, Deg C Ft, Mtr, Fa
  (set by NMEA sentence)
• Alarms: Built-in 85 dB audible alarm, Settable Low and High
  alarms for each data source (Depth, Speed, Battery Voltage,
  Seawater Temperature)
• Size: 4.3”’ x 4.3”’ (110m x 110mm)
• Mounting: 2-1/8”’ (54mm) round hole
