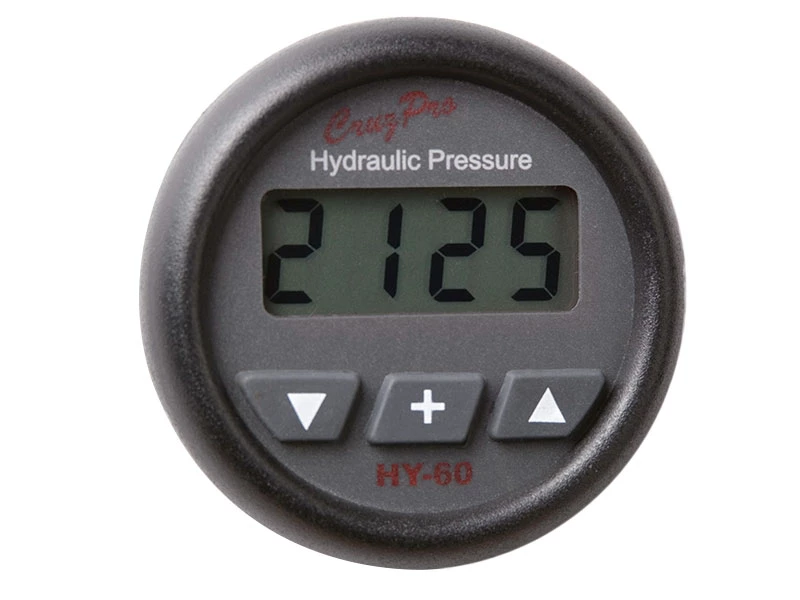

CruzPro HY-60 Hydraulic Pressure Gauge

The HY60 is a digital gauge that works with 4-20mA hydraulic
pressure senders and displays hydraulic pressure on a 4 digit LCD
display.

Displays Hydraulic Pressure in Psi or Bars from 30 psi to 10,000
psi

Built-in calibration curves for most popular 4-20 mA hydraulic
pressure senders manufactured by Ashcroft, Omega, Midas, Gems.

Low and High pressure alarms can be set over the entire range of
the instrument/sender. When activated, the HY60 built-in 85 dB
alarm will sound and the display will flash.

NMEA 0183 compatible serial data output on a screw terminal at
the rear of the instrument.

Draws only 0.017 amps, works on both 12V and 24V system and 5
levels of backlight (including OFF) can be selected from the front
panel.

Specifications:

• Operating Voltage: 6.5 – 33.0 VDC
• Current Drain: 0.018 amps nominal
• Operating Temperature: 32 to 122 deg F (0 to 50C)
• Functions: Display Hydraulic Pressure Display High and Low
  Pressure Alarms
• Display: 4 digit LCD 5 levels of backlighting PSI or BARS
• Size: 2.5” dia X 4.1” deep (65mm x 104mm)
• Mounting: 2-1/8” (54mm) round hole

Connection Diagram:
