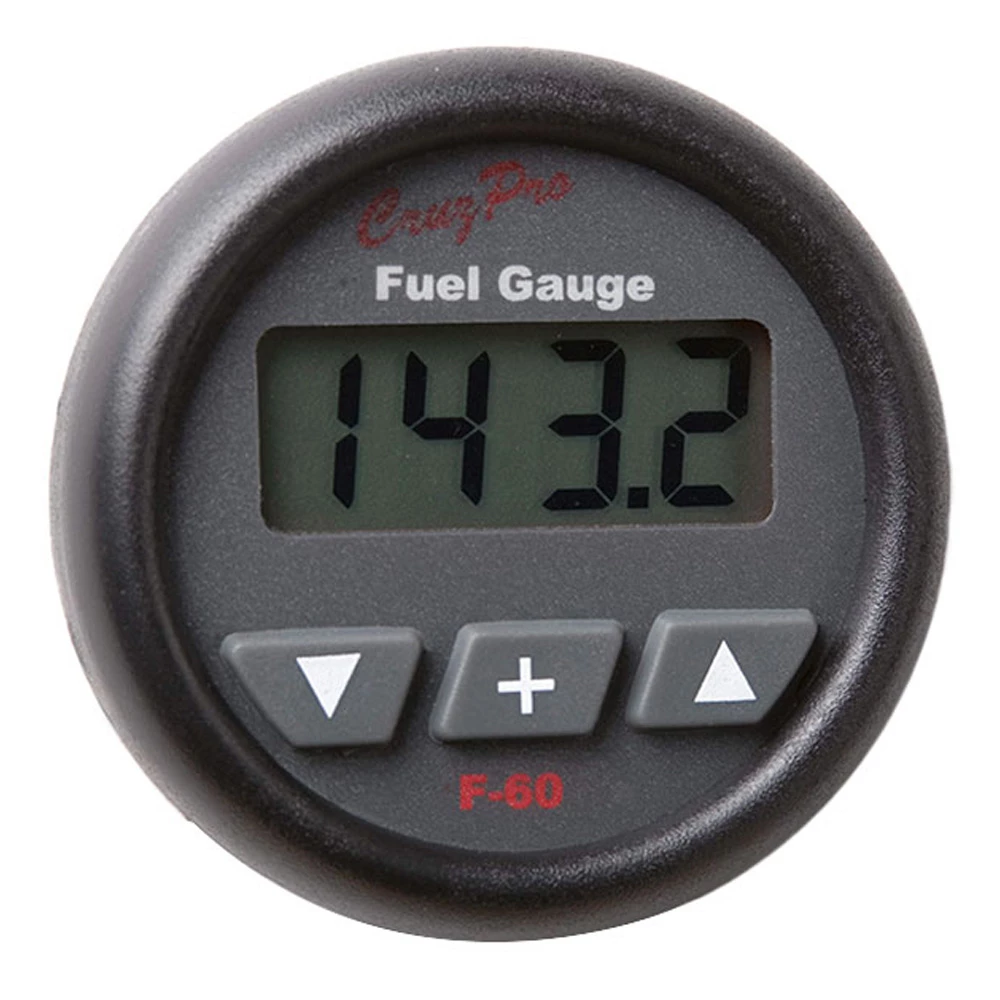

CruzPro F-60 Fuel Gauge

The F60 Digital Fuel Gauge provides a digital display for fuel
level.

Displayed in liters, gallons or percent (0-100%) up to 999
gallon/liters or as a percentage (0-100%) up to 6500
liters/gallons.

Pre-programmed to work with common resistive type level senders.
0-30, 0-70, 0-90, 10-73, 10-180, 33-240, 40-250 ohm outputs made by
VDO, Teleflex, Mercury, GM, Stewart-Warner, Centroid, Aero-Tec.

The sender editor function enables you to custom set sender
resistance range between zero and 999 ohm.

Low and High Level alarms can be easily set by the user with
external control output for fuel transfer pump control. When
activated, the built-in 85 dB alarm will sound and the display will
flash.

NMEA 0183 serial data output for connection to remote displays
and repeaters

Regulated sender voltage so the reading is stable and does not
change with main battery voltage.

Five levels of backlighting can be selected and all set-up,
calibration constants, alarm values and sender characteristics are
saved in a non-volatile memory.

Low current operation 0.017 amps

Specifications:

• Operating Voltage: 9.5 – 33.0 VDC
• Current Drain: 0.018 amps nominal
• Display: 4 digit LCD, 5 levels of backlighting
• Data: Fuel level display in Liters or Gallons or as a
  percentage (0-100%)
• External Outputs/Alarms: Output screw terminal user
  programmable for choice of: NMEA 0183 serial External Alarm Output
  Day tank fuel transfer pump control
• Data Output: NMEA 0183 serial 4800 BAUD ($IIXDR sentence).
• Alarms: Built-in 85 dB audible alarm. Independent settable low
  and high level alarms.
• Fuel Transfer Pump Control: Programmable lower fuel level limit
  to turn ON a fuel transfer pump. Programmable upper fuel level
  limit to turn OFF the fuel transfer pump.
• Inputs: ul style=’margin-left:10px;’>
• Tank Level Senders: All popular American and/or European
  resisitive type fuel level senders with 0-30, 0-70, 0-90, 10-73,
  10-180, 33-240, 40-250 ohm (and their reverse) such as GM, VDO,
  Teleflex, Faria, Centroid, Aerotech, Stewart-Warner, etc.
• Sender ’empty/full’ editor enables you to create anytype sender
  resistance range between zero and 999 ohm empty/full or
  full/empty.

• 0 to 5V , 5V to 0V and 4-20 mA versions are available as a
  special order item.
• Data Output: NMEA 0183 serial 4800 BAUD ($IIXDR sentence).
• Alarms: Built-in 85 dB audible alarm. Independent settable low
  and high level alarms.
• Size: 2.5”’ dia X 4.1”’ deep (61mm x 104mm)
• Mounting: 2-1/8”’ (55mm) round hole
