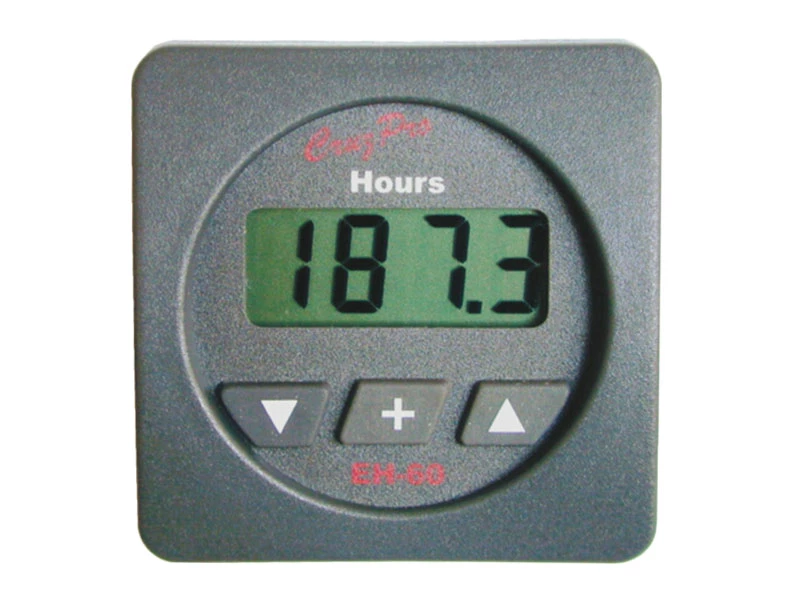

CruzPro EH60 Engine Hours And Trip Time Gauge

The EH60 is a full featured Engine Hours and Elapsed Trip Time
gauge.

Displays total engine hours and elapsed trip time from 000.0
hours to 9999 hours.

A countdown alarm can be set to warn you to perform needed
maintenance such as changing the engine oil or oil filters. When
activated the built-in alarm will sound and the display will
flash.

The total engine hours can be preset for retrofit to older
existing engines.

Five levels of backlighting can be selected from the front
panel, including OFF and the backlights can be deactivated with a
remote switch. All calibration and alarm values are saved to a
nonvolatile memory.

Easy to install with a minimum of only two wires connected to
the ignition line and ground.

The EH60 outputs Total Engine Hours, and Elapsed Time on the
standard NMEA 0183 serial data line at 4800 BAUD. This ASCII
information can be used to log performance or repeat the display
information at a remote location on the CruzPro RP30 and/or RP110
data repeaters

Draws only 0.018 amps

The EH60 is a full featured Engine Hours and Elapsed Trip Time
gauge.

Displays total engine hours and elapsed trip time from 000.0
hours to 9999 hours.

A countdown alarm can be set to warn you to perform needed
maintenance such as changing the engine oil or oil filters. When
activated the built-in alarm will sound and the display will
flash.

The total engine hours can be preset for retrofit to older
existing engines.

Five levels of backlighting can be selected from the front
panel, including OFF and the backlights can be deactivated with a
remote switch. All calibration and alarm values are saved to a
nonvolatile memory.

Easy to install with a minimum of only two wires connected to
the ignition line and ground.

The EH60 outputs Total Engine Hours, and Elapsed Time on the
standard NMEA 0183 serial data line at 4800 BAUD. This ASCII
information can be used to log performance or repeat the display
information at a remote location on the CruzPro RP30 and/or RP110
data repeaters

Draws only 0.018 amps

Specifications:

• Operating Voltage: 9.5 – 33.0 VDC
• Current Drain: 0.018 amps nominal
• Display: 4 digit LCD, 5 levels of backlighting
• Data: Engine Hours (0.0-9999), Elapsed Time (00:00 mins/sec to
  99:59 hrs/mins)
• Inputs: External Backlight ON/OFF control
• Data Ouput: NMEA 0183 serial 4800 BAUD
• Alarms: Built-in 85 dB audible settable maintenance alarm
• Size: 2.5” dia X 4.1” deep (61mm x 104mm)
• Mounting: 2-1/8” (55mm) round hole

Connection Diagram:
