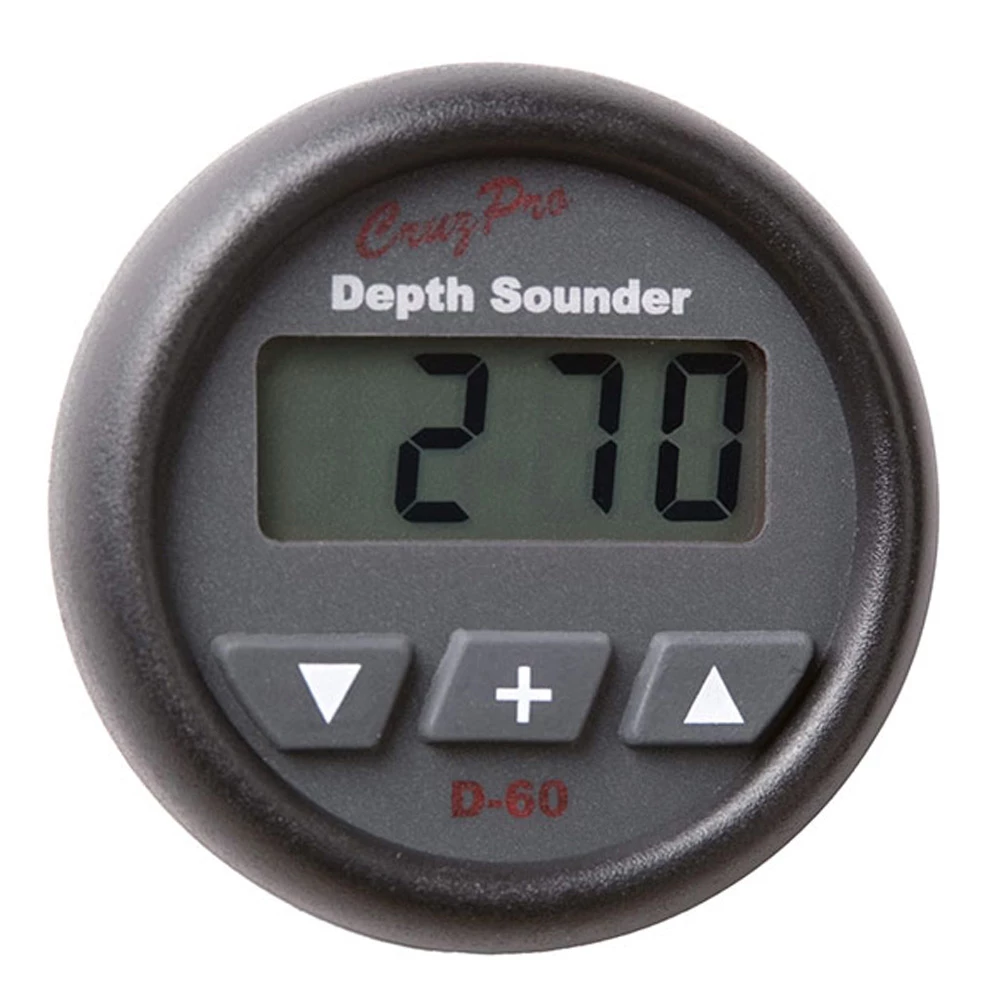

CruzPro D-60 Depth Sounder

Compact and sensitive

The CruzPro D-60 Depth Sounder is a compact
digital depth gauge. The D60 uses Digital Signal Processing (DSP)
to reliably display water depth from 1.2 foot (0.4 Metre) to 1000+
feet (365 Metres). Depth can be displayed in feet, metres or
fathoms. Variable display damping is provided.

The CruzPro D-60 Depth Sounder has programmable
shallow, deep and anchor drag alarms built-in and can display the
depth in feet, metres or fathoms. A keel offset from -20.0 to +20.0
feet can be entered so the D60 shows the depth below the surface,
below the keel or below the transducer.

TheCruzPro D-60 Depth Sounder uses Digital Signal
Processing (DSP) to enable sensitivity never before found in such a
low cost small sounder. The DSP also provides superior high speed
rejection of false signals due to transducer slap (buffeting),
surface turbulence, thermoclines, double bounce and is almost
immune to other depth sounders and fishfinders operating
near-by.

Five levels of backlighting can be selected for night-time viewing
and all set-up constants are saved in a non-volatile memory.

CruzPro D-60 Depth Sounder Specifications:

• Operating voltage: 9.5 – 16.0 VDC
• Current drain: 0.030 amps nominal
• Operating temperature: 32 to 122 deg F (0 to 50 C)
• Display: 4 digit LCD
  5 levels of backlighting
  Variable display damping
• Data: Depth 1.2 to 19.9 feet in tenths and 20 – 1000+ feet full
  digits or Metres, or Fathoms equivalent
• Alarms: Built-in 85 dB audible alarms for shallow, deep and
  anchor drag
• Keel Offset: Adjustable -20.0 to +20.0 feet in tenths
• Size: 2.5″ dia X 4.1″ deep (61mm x 104mm)
• Mounting: 2-1/8″ (55mm) round hole
