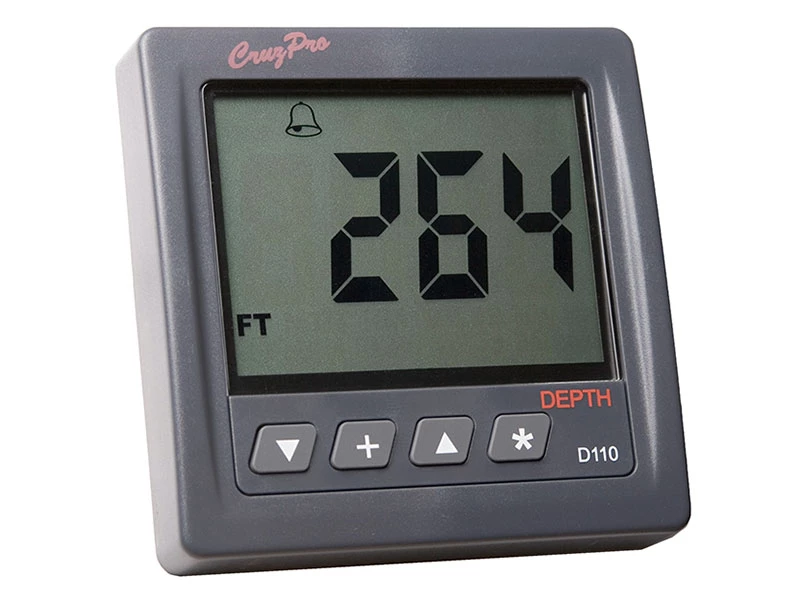

CruzPro D-110 Depth Sounder

The D110 Digital DSP depth sounder uses advanced Digital Signal
Processing (aDSP) to reliably display water depth from 0.4 Metres
(1.2 foot) to over 365 Metres (1000+ feet).

With DSP the D110 has sensitivity not normally found in low cost
depth sounders. The aDSP provides superior high speed rejection of
false signals due to transducer slap (buffeting), surface
turbulence, thermoclines, and double bounce. It is almost immune to
other depth sounders and fishfinders operating near-by.

User programmable shallow, deep and anchor drag alarms with
built-in alarm sounder and remote alarm output.

Adjustable keel offset from -6 to +6 Meters (-20.0 to +20.0
feet) to compensate for transducer location below the water
line.

Depth can be displayed in feet, meters or fathoms.

The alarm values and keel offset are automatically converted if
the units of measure are changed between feet, meters and
fathoms.

Up to five levels of back-lighting.

All setups and calibration constants are saved to a non-volatile
memory. will not be lost if power is turned off.

The D110 outputs depth and keel offset as a NMEA 0183 serial
data. This information can be used to log performance or repeat the
display information at a remote location.

Operating voltage 9.5 to 16 volts.

NOTE: Requires a transducer, transom and
thru-hull speed/temperature transducers available separately.

Specifications:

• Operating Voltage: 9.50 – 16.00 VDC
• Current Drain: 0.035 amps nominal
• Operating Temperature: 32 to 122 deg F (0 to 50 C)
• Display: Large 4 digit LCD, 5 levels of backlighting with
  external backlight on/off control
• Display Data: Depth Shallow Alarm Deep Alarm Keel Offset Feet,
  Meters, Fathoms
• Ranges: 1.2 to 1000+ feet (in tenths below 20.0) 0.4 to 365+
  meters (in tenths below 20.0) 0.2 to 167+ fathoms (in tenths below
  20.0)
• Data Ouput: NMEA 0183 serial 4800 BAUD, $SDDPT Programmable as
  an external alarm output
• Alarms: Built-in 85 dB audible alarm. Settable shallow, deep
  and anchor drag alarms.
• Size: 4.3”’ x 4.3”’ (110m x 110mm)
• Mounting: 2-1/8”’ (54mm) round hole
