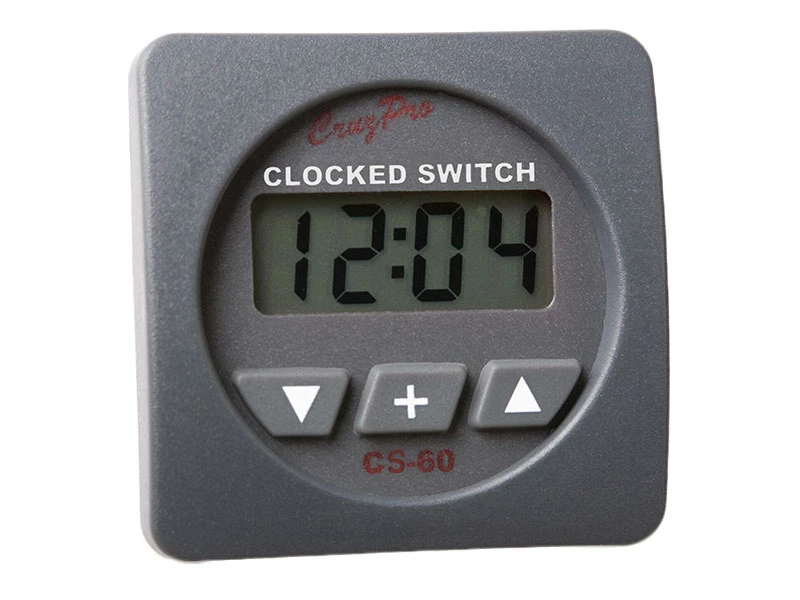

CruzPro CS-60 Quad Clocked Switch

The CS60 is a quad switch that can switch up to 4 amps per
circuit (16 amps total) under control of an accurate digital
clock.

You can program the CS60 to automatically switch each circuit ON
and OFF up to 3 times per day per circuit or periodically switch
each of the four circuits ON and OFF for different time
periods.

You can also switch each of the four circuits ON and OFF
manually using the front panel push buttons. The CS60 can be told
to beep every time it switches a circuit ON or OFF automatically or
work silently.

Use the CS60 to control 12V lights, automatically turn on
receivers or radios, run bait tank pumps to pump fresh water
periodically or refrigeration heat exchangers, sound fog horns.

The CS60 works over an operating voltage range from 9.5 to 15.0
VDC.

The CS60 draws only 0.018 amps and 5 levels of backlight
(including OFF) can be selected from the front panel.
