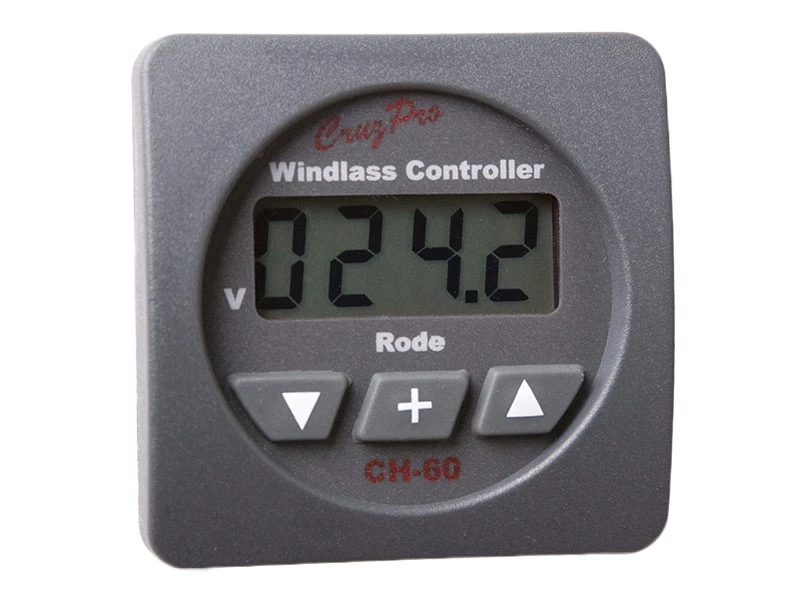

CruzPro CH-60 Intelligent Windlass Controller

Hands-off Auto UP/DOWN. The CH60 can retrieve the chain
automatically, stopping when the anchor gets to 1.5 meters of the
bow roller. You can set the CH60 to deploy chain stopping when the
preset amount has been deployed.

The slow-down feature slows more as the anchor gets closer to
the roller prevent nasty bumps and scrapes. Can be disabled if you
need to park the anchor quickly.

In auto UP/DOWN mode, the CH60 monitors the performance of the
windlass. If a chain jam occurs or the anchor is stuck, the CH60
will stop the windlass.

The CH60 can be set to back-jog the chain. This removes tension
off the chain, capstan and windlass gears increasing equipment life
and parks the chain into a chain stopper.

The CH60 can display windlass battery voltage when deploying or
retrieving the anchor so you can check the condition of the
windlass battery from the helm.

You can use the front panel buttons to control your anchor from
the cockpit or helm station. With a press of the button you can
display deployed rode in Feet, Meters or Fathoms and windlass
battery voltage.

The CH60 remembers how much chain you have deployed when the
power is off and displays the correct number when you turn it back
on.

5 levels of backlight (including OFF) can be selected from the
front panel.

The units are factory calibrated, if required this can be
adjusted over a wide range using the front-panel switches to suit
your particular needs. All calibration data is saved to
non-volatile memory and will stay when the power is removed.

Can control 12 or 24 VDC winches.

Available with round or square bezels.

The CH55 draws only 0.017 amps, 6.5 to 30.0 VDC

Specifications:

• Operating Voltage: 6.5 – 33.0 VDC
• Current Drain: 0.018 amps nominal
• Operating Temperature: 32 to 122 deg F (0 to 50C)
• Functions: Display Rode Display Windlass Battery Voltage Slow
  anchor when approaching bow roller Programmable Rode deployment
  Auto UP/DOWN function Automatic backjog to release tension off
  gears Auto JAM detect
• Display: 4 digit LCD 5 levels of backlighting Feet, Meters or
  Fathoms Windlass battery voltage
• Data Output: NMEA 0183 serial 4800 BAUD
• NMEA Data: Anchor rode, Feet, Meters, Fathoms Windlass Battery
  Voltage, 6.5-33.0 VDC
• Solenoid Drive Capability: Activates UP/DOWN reversing
  solenoids drawing up to 2.5 amps
• Size: 2.5” dia X 4.1” deep (61mm x 104mm)
• Mounting: 2-1/8” (55mm) round hole

Connection Diagram:
