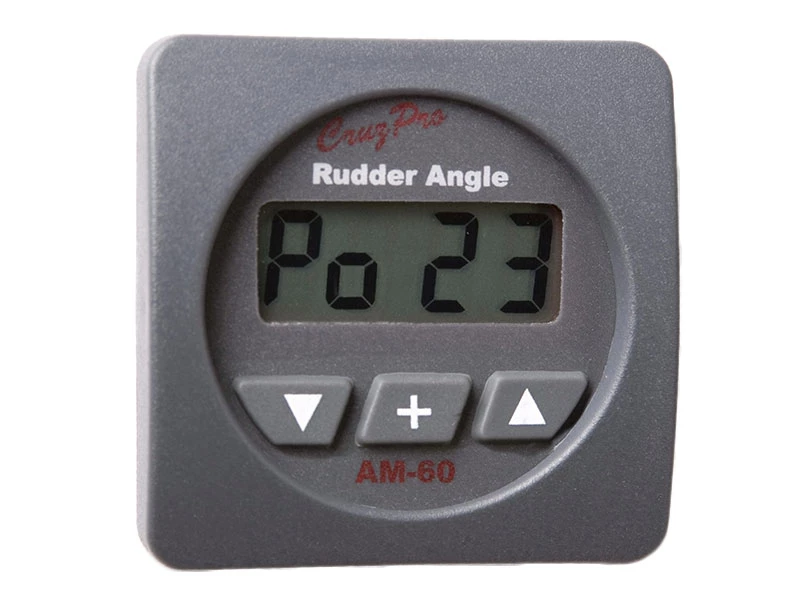

CruzPro AM60 Rudder Angle Indicator

The AM-60 provides an accurate single sensor rudder angle
indicator. Rudder angle is displayed in full units between -90 and
+90 degrees. Separate alarm limits can be set for port and
starboard. When activated, the built-in 85 dB alarm will sound and
the display will flash.

The AM-60 provides for sender calibration and zero (rudder
center) set.

The rudder angle is output on a NMEA 0183 compatible serial data
line. This ASCII information can be used to log performance or
repeat the information at a remote location.

Five levels of backlighting can be selected for night-time
viewing and all set-up, calibration constants and alarm values are
saved to non-volatile memory.

The AM-60 can be operated from a 9.5 to 33.0 VDC power
supply.

The AM60 works with all standard rudder angle sensors and can be
connected as either a master or slave.

Specifications:

• Operating Voltage: 9.5 – 33.0 VDC.
• Current Drain: 0.030 amps nominal.
• Operating Temperature: 32 to 122 deg F (0 to 50 C)
• Display: 4 digit LCD, 5 levels of backlighting.
• Data: Rudder Angle: -90 to +90 degrees Port and Starboard.
  Connect as Master or Slave. NMEA 0183 serial data output. Standard
  $IIRSA sentence.
• Alarms: Independent Port and Starboard built-in 85 dB audible
  alarms for excess rudder angle. Programmable External Alarm
  output.
• Size: 2.5” dia X 4.1” deep (61mm x 104mm)
• Mounting: 2-1/8” (55mm) round hole.

Connection Diagram:
