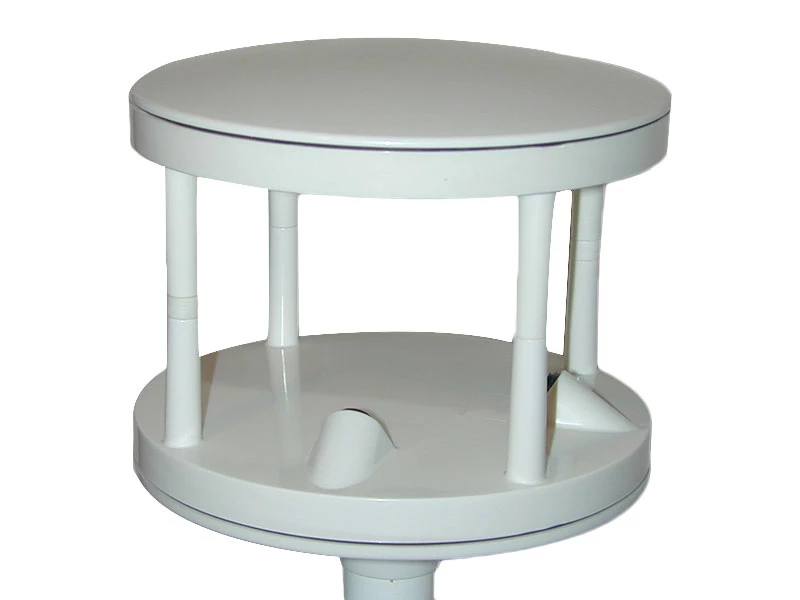

CruzPro 3D Ultrasonic Wind Speed And Direction Sensor

The UWSD10 wind speed and direction sender uses advanced
ultrasonic technology to accurately map wind information in 3
dimensions.

The ultrasonic technology has no moving parts, nothing to wear
out.

Each UWSD10 wind sensor is individually calibrated in CruzPro’s
wind tunnel every 1 degree from 0 to 359 degrees and the errors
mapped and compensated to provide the best accuracy possible

The UWSD10 calculates wind speed with a resolution of 0.01 knots
and works from zero wind speed to 120 knots. Wind direction is
output in degrees and air temperature in degrees C.

Provided with a 30M cable and two waterproof connectors.

Specifications:

• Operating Voltage: 9.5 – 33.0 VDC
• Current Drain: 0.040 amps nominal
• Low power version available (<5 mA)
• Resolution: Speed: 0.01 knot
• Direction: 1 degree
• Air Temperature: 1deg
• Range: Speed: 0.00 – 120.00 knots
• Direction: 0-359 degrees
• Air Temperature:0-37 deg C
• Accuracy: Speed: 2% @10 Knots
• Direction: +/- 2 degrees @ 10 Knots
• Temperature: +/- 1 degree C
• Sensor: 4 Ultrasonic sensor. 3D measurement not affected by
  heel angle.
• Data Output: NMEA 0183 Wind Speed/Direction and Air
  Temperature:$WIMWV,ddd,R/T,sss.s,N,ACS. $YXXDR,C,tt.t,CCS
• Size: 140 mm diameter, 260mm long including 150mm (6inch)
  mounting pole
• Mounting:Two U clamps or two bolts (not included)
